CIDOO ABM066

VIA-programmable Hot Swappable Wired/Wireless Mechanical Keyboard

  • Alice-layout for ergonomic comfort
  • VIA-programmable & TFT-LCD screen for unparalleled customization
  • Hot-swappable custom silent switches
  • Rotary knob for easy control
  • Multiple connectivity options: Bluetooth, 2.4Ghz, and Type-C
  • Dye-sub PBT keycaps for durability
Assembled Keyboard
Barebones Kit
White
Black
Regular price $89.99
Sale price $89.99 Regular price

Free standard shipping to most countries

Enjoy free shipping to most countries*. Please refer to our shipping FAQ to see if you apply.

7-Day Return Policy

You may return any non-customized and non-sales product that is sealed, within the 7 days upon receiving it.

PRODUCT DESCRIPTION

The Unconventional Alice Layout

Step into a new dimension of typing comfort with the ergonomic Alice layout. The CIDOO ABM066 offers a uniquely contoured design that aligns with the natural positioning of your hands for enhanced ergonomics. The Alice layout offers a groundbreaking shift from traditional keyboard designs by providing a contoured, split layout that dramatically reduces the stress on your wrists and fingers. The shape is engineered to follow the natural curve of your hands as they rest on the keyboard, offering an intuitive and comfortable typing experience.

VIA-Programmable: Your Keyboard, Your Rules

Complementing its ergonomic design, the CIDOO ABM066 also boasts a robust VIA-programmable feature. This open-source software offers an intuitive interface for real-time customization without requiring any coding skills. From key remapping and layer configurations to RGB customization and macro creation, VIA turns your keyboard into a highly personalized device.

Triple Modes: Type-C Wired, Bluetooth 5.0 & 2.4GHz Available

The CIDOO ABM066 supports connection via Bluetooth or 2.4GHz for wireless connectivity, or with the included Type-C USB cable. With Bluetooth 5.0, it easily connects seamlessly with your devices within 10 meters. Equipped with an 3000mAh battery, the keyboard is also easily switched among the three modes for efficient multitasking and speedy performance.

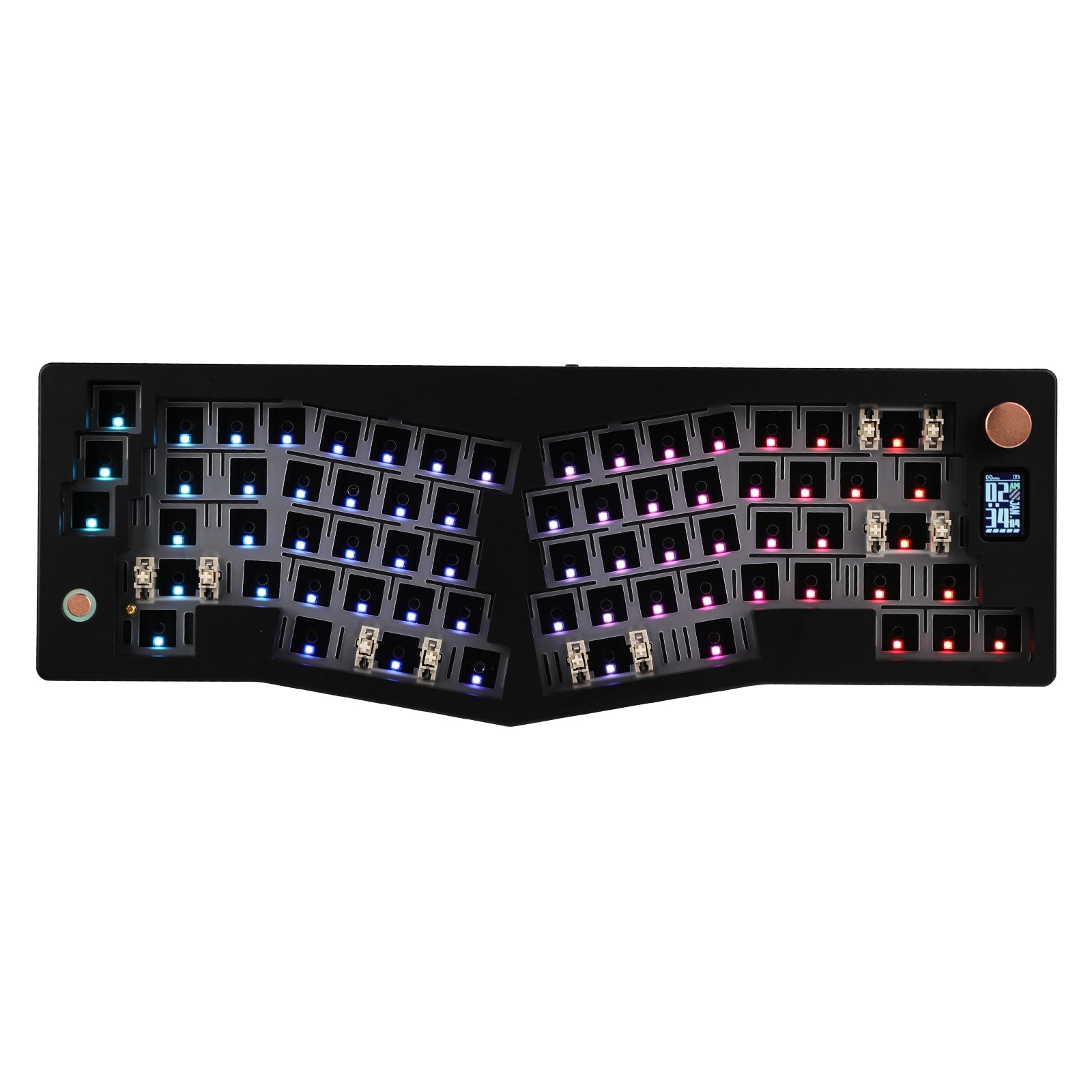

South-facing LED RGB Backlight & Custom Silent Blue Switches

The CIDOO ABM066 features south-facing LED RGB backlights with different light effects. This is also perfect with the custom CIDOO Silent Blue switches which includes LED slot to fit the amazing RGB lights. What’s more, the switches are pre-lubed to increase the smooth sense. With the operating force of 37g and bottom force 45g, the linear switches are perfect on the keyboard to be easily pressed and shine-through.

Gasket mounted with Flex-cut PC Mounting Plate

The CIDOO ABM066 goes above and beyond by incorporating a gasket-mounted mechanism with a flex-cut PC (Polycarbonate) mounting plate. The ABM066 utilizes foam gaskets to cushion the interaction between the plate and the PCB. The result is a softer bottom-out and top-out feel, which reduces typing fatigue and offers a ‘bouncier’ experience compared to traditional tray or top mounts. With the flex-cut PC mounting plate, the keyboard enhances these inherent qualities by adding strategically-placed cuts to allow the plate to flex more when keys are pressed. This results in a feel that many describe as 'cloud-like' or 'cushioned,' providing not just a tactile but almost a 'floating' typing experience.

Dye-sub PBT Keycaps: Beauty That Lasts

Durable & Stylish: Made from PBT, these keycaps are known for their longevity, resisting the shine and wear that often comes with ABS keycaps. The dye-sublimation process imprints the legends onto the keycaps, ensuring they never fade over time. This results in keycaps that not only feel premium but also maintain their vibrant and clear legends even after extensive use.


Specifications for Custom Switch
CIDOO Silent Blue Switch
  • Type: Linear
  • Pin: 5 Pin
  • Upper Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Lube: Factory lubed
  • Pre-Travel: 2.0±0.5mm
  • Total Travel: 3.8±0.3mm
  • Initial Force: 35gf Min
  • Spring: 15mm Spring
  • Bottom Force: 55gf Max
  • Lifespan: 1000 million times

Technical Specifications

Model
CIDOO ABM066
LAYOUT
Split Alice
Keys Amount
67 Keys + 1 Knob
Hot-Swappable
Yes
Connectivity
Type-C Wired, Bluetooth 5.0 & 2.4GHz
Keycap material
Dye Sublimation PBT
Keycap Profile
MDA
Structure
Gasket Mount
Gasket Material
Poron foams
Case Material
ABS Plastic
PCB Thickness
1.2mm
Plate Material
PC
Battery Capacity
3000mAh
Anti-Ghost Key
NKRO in all modes
LED Direction
South-facing
Switch Included
CIDOO Silent Blue Switch
Cable Length
1.5m
Dimension
371 x 121 x 40 mm
Weight
0.8kg

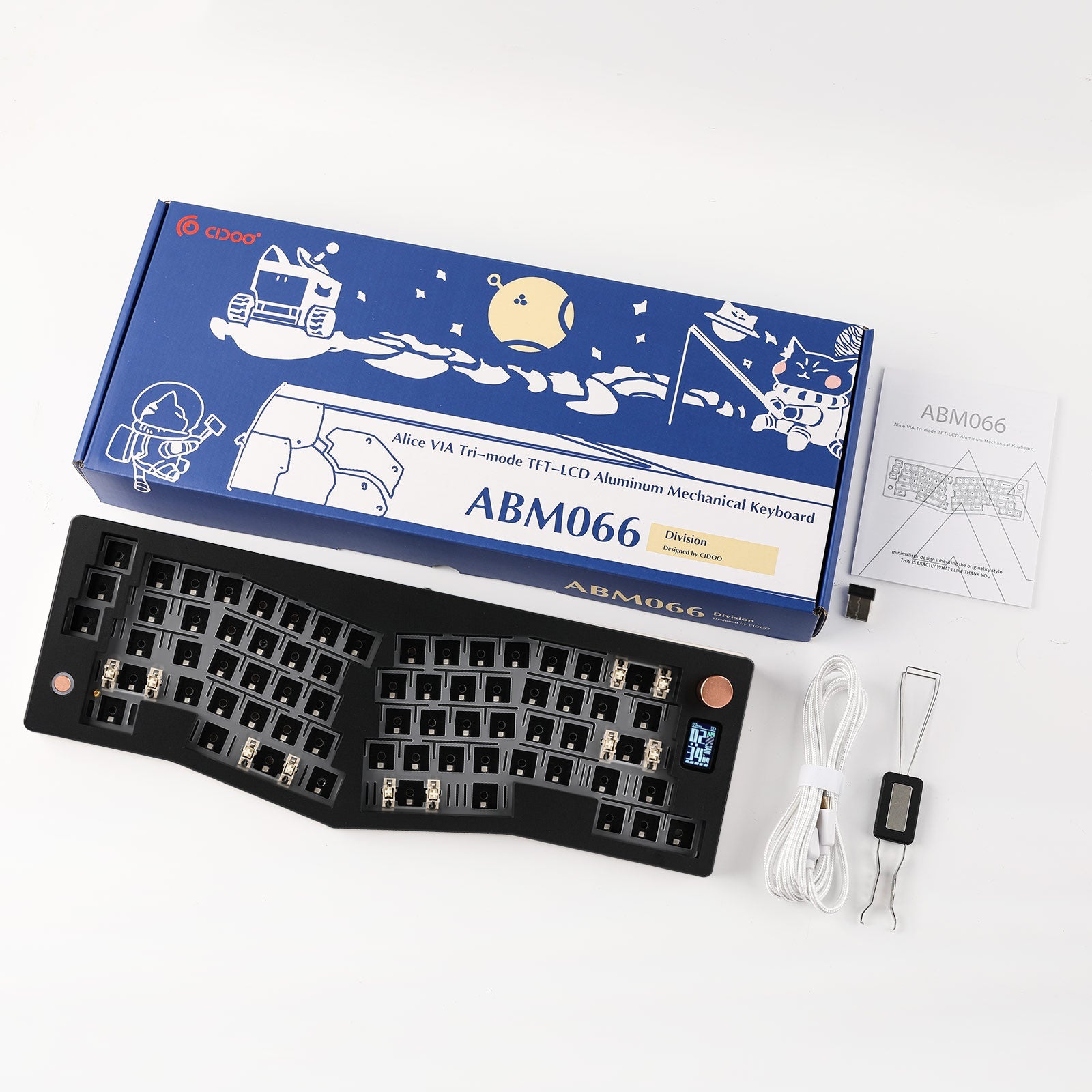

Inside the box
  • 1 * Keyboard
  • 1 * USB Cable
  • 1 * 2.4G Receiver
  • 1 * Instructional Manual
