CIDOO ABM098

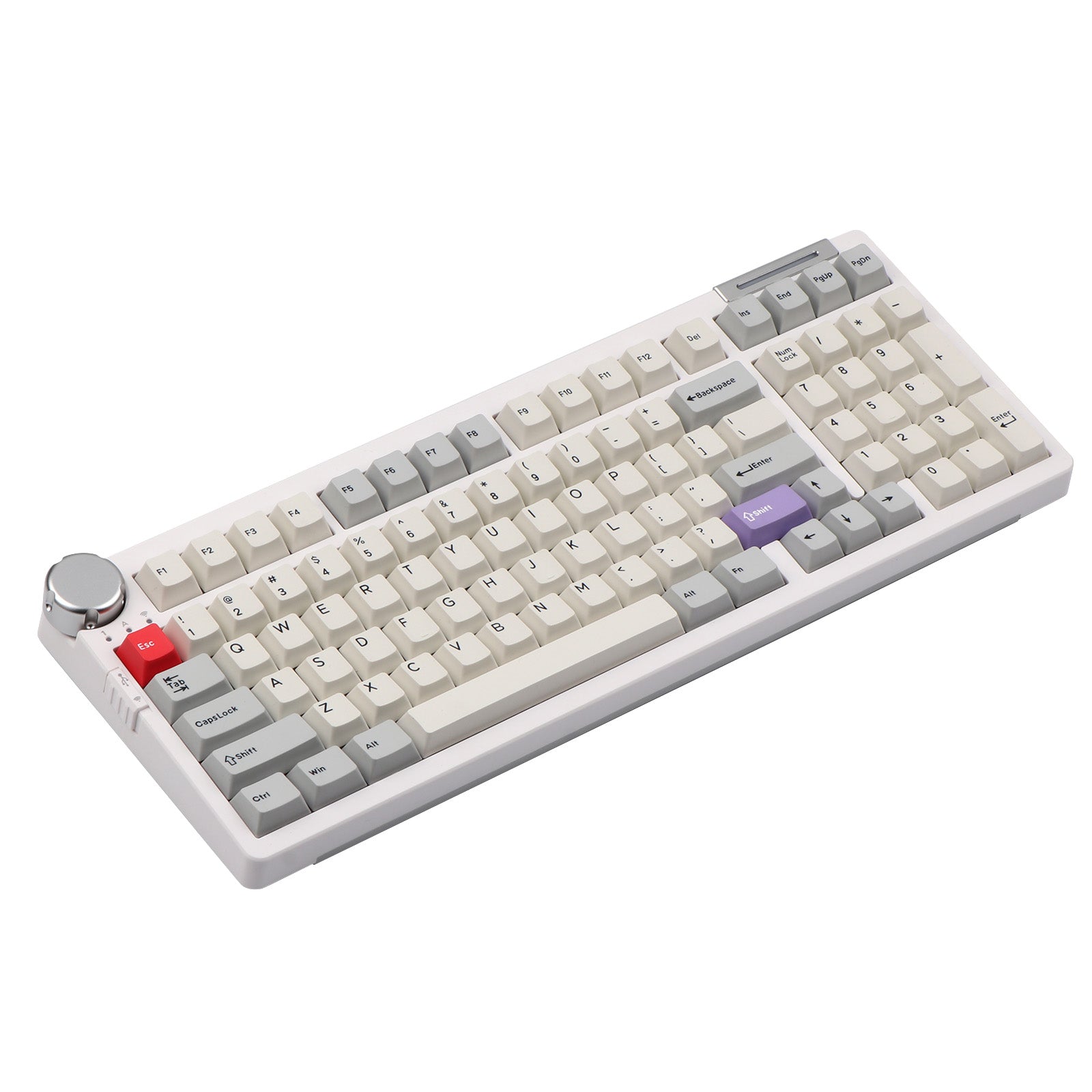

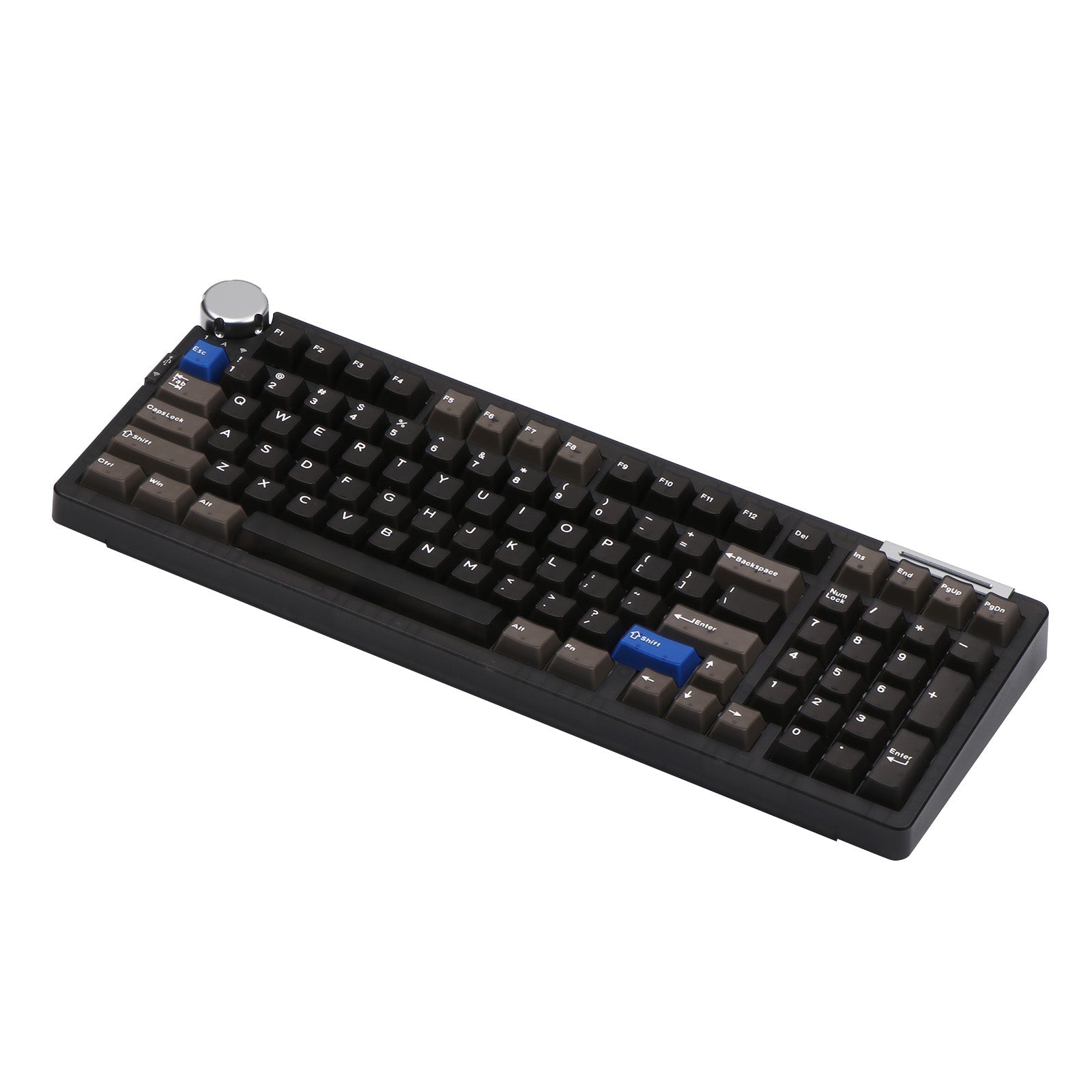

1800 Compact VIA Gasket Mount Hot Swappable Mechanical Gaming Keyboard

  • ANSI layout, 1800-compact Keyboard
  • VIA Programmable
  • Three Connectivities: Bluetooth 5.0/2.4Ghz/Type-C
  • Hotswappable with 3-pin & 5-pin Mechanical Switches
  • Rotary Knob for Media Control & NKRO Supportable
  • South-facing LEDs & Multiple RGB Effects

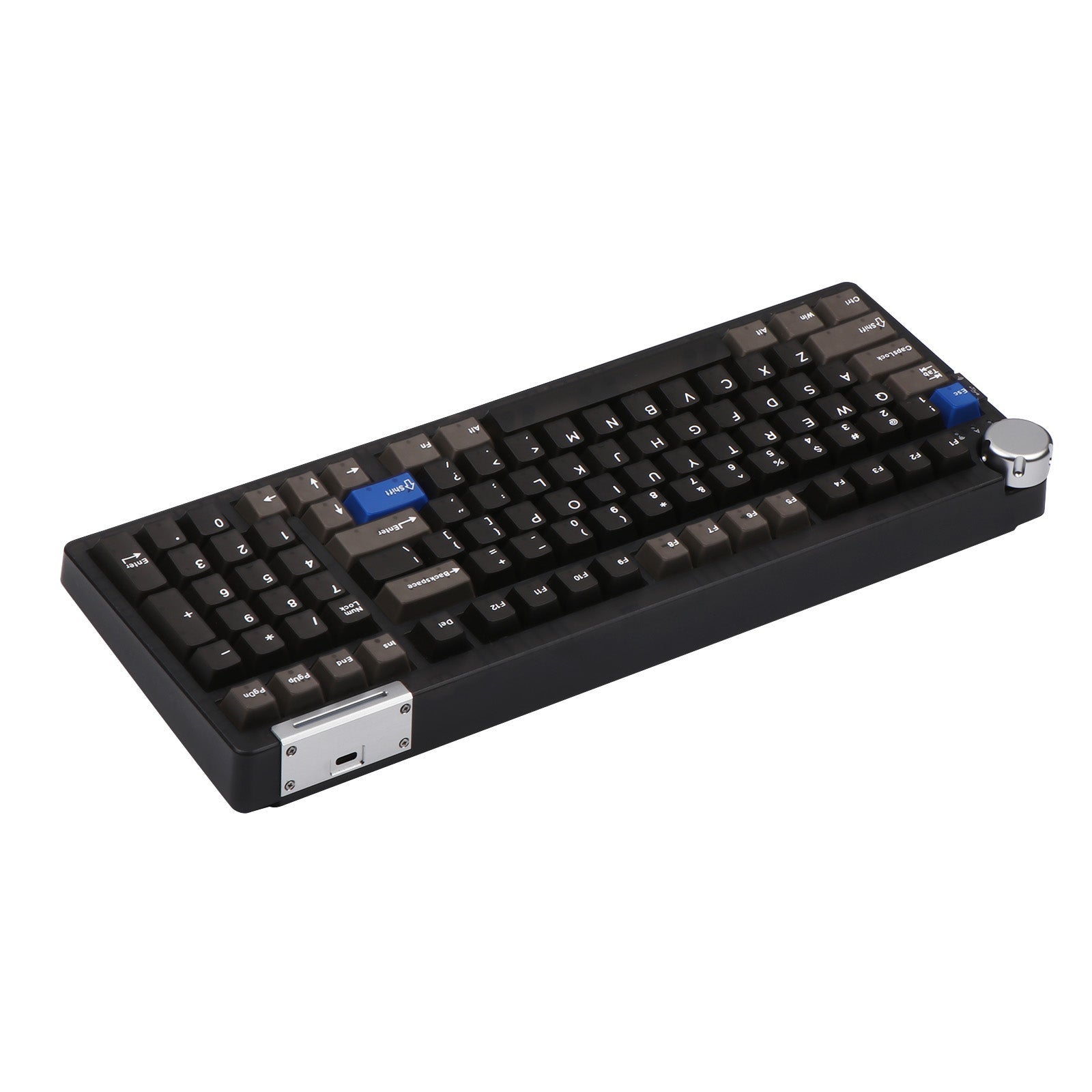

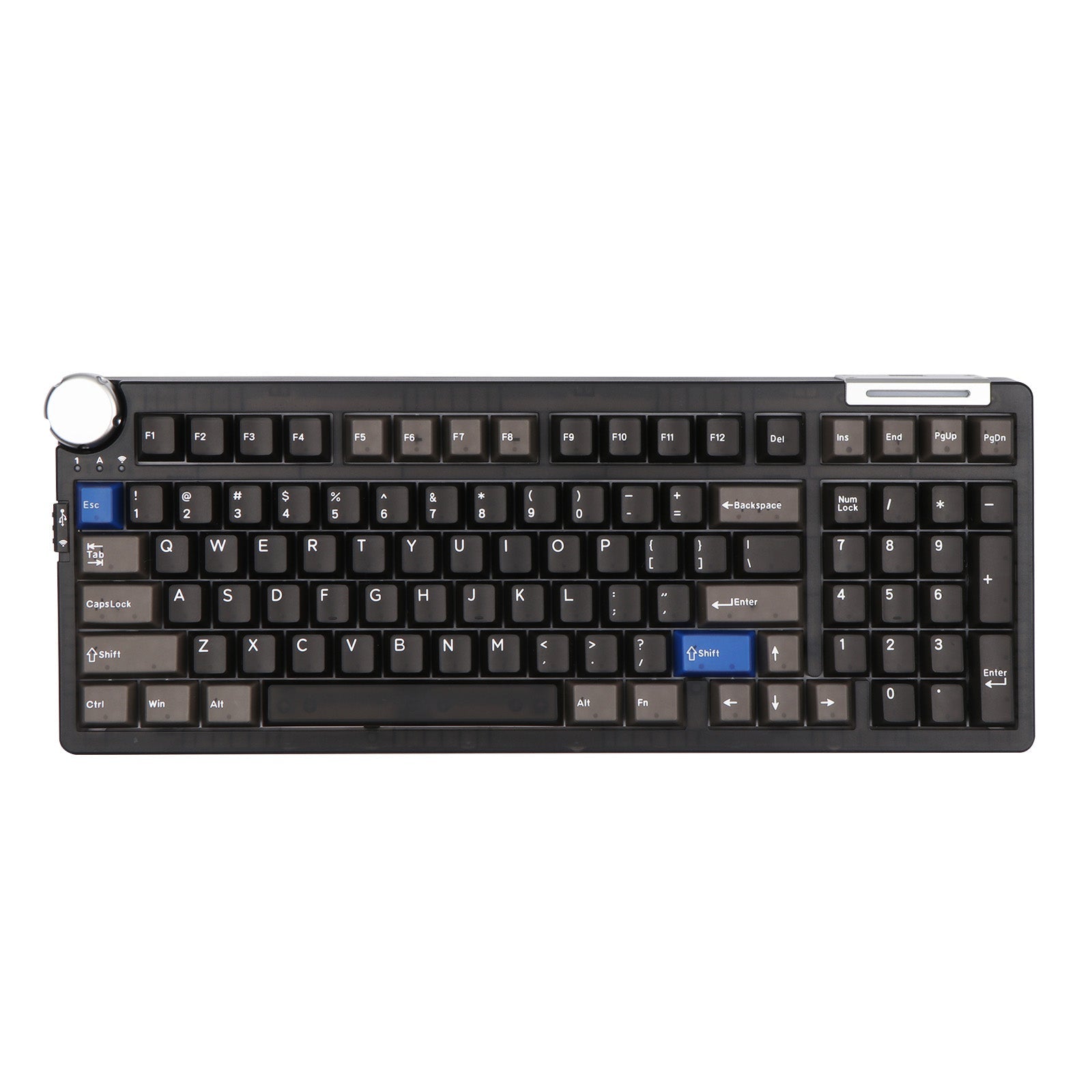

Black

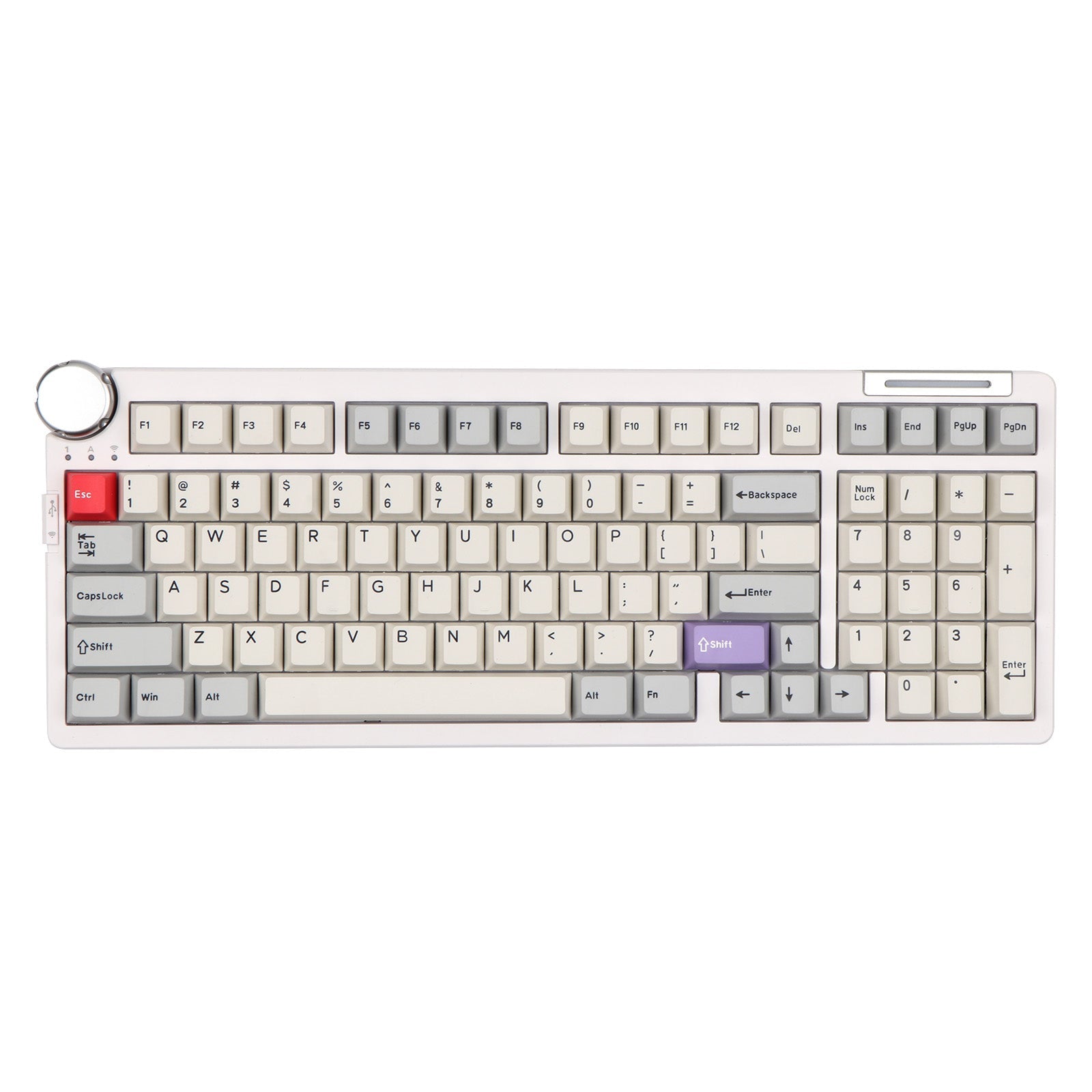

Grey

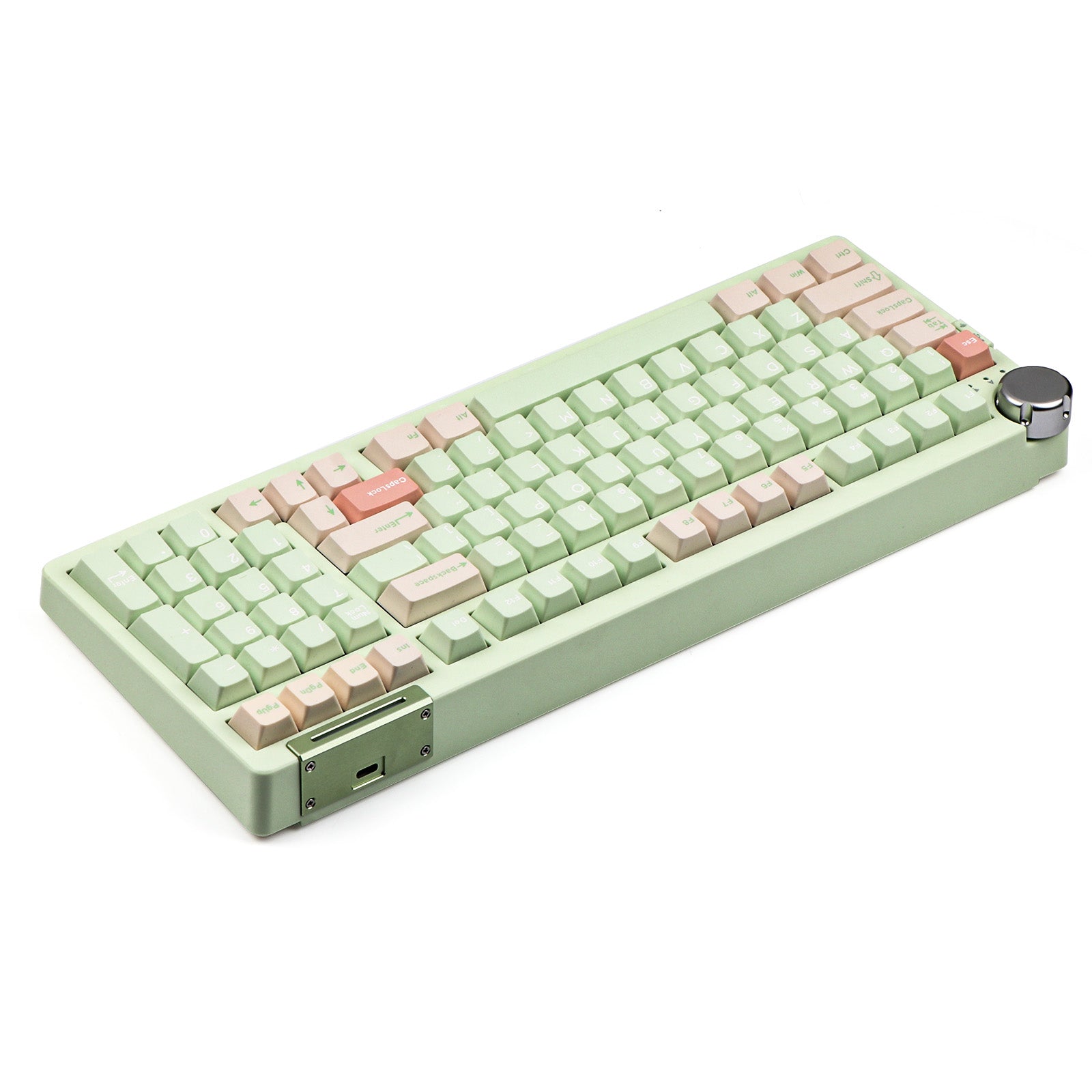

Green
Regular price $119.00
Sale price $119.00 Regular price $119.00

Free standard shipping to most countries

Enjoy free shipping to most countries*. Please refer to our shipping FAQ to see if you apply.

15-Day Return Policy

15-day no-reason free return and exchange policy, you have ample time to try out your new product and decide if it's right for you.

PRODUCT DESCRIPTION

VIA Programmable

With the popular V65 keyboard, CIDOO is launching an upgraded keyboard that supports VIA programmable ¨C and can be connected by type-C wired, 2.4G wireless and 5.0 Bluetooth! For those who are used to using other keys that are not in the keyboard, the VIA software is here to help! Creating macros and remapping keys are easily fulfilled with VIA. Equipped with on-board memories, the key changes can be saved in different layers and the keyboard can be easily switched to different layers. It is ideal for those who demand accuracy, speed, reliability and endurance for long time gaming sessions.

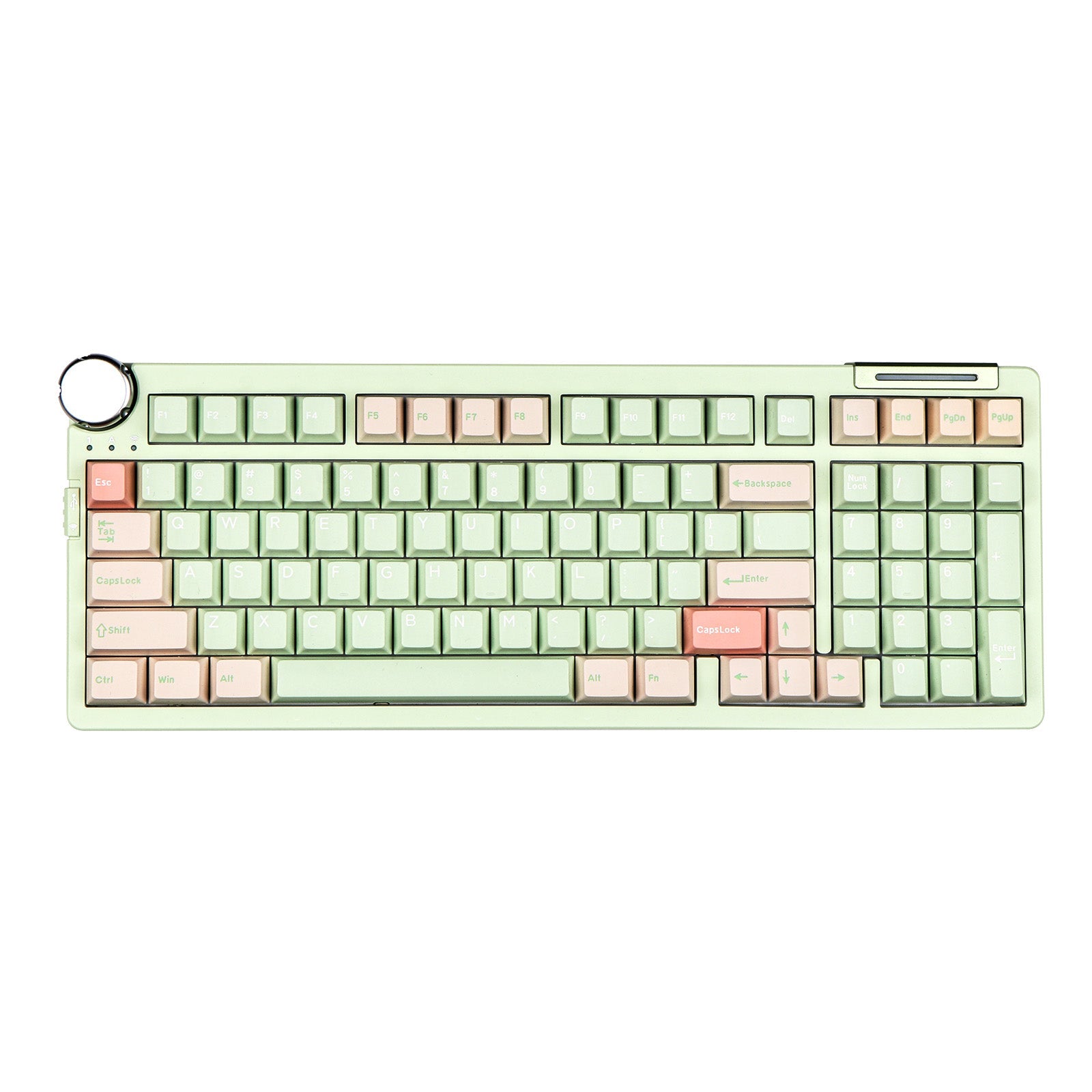

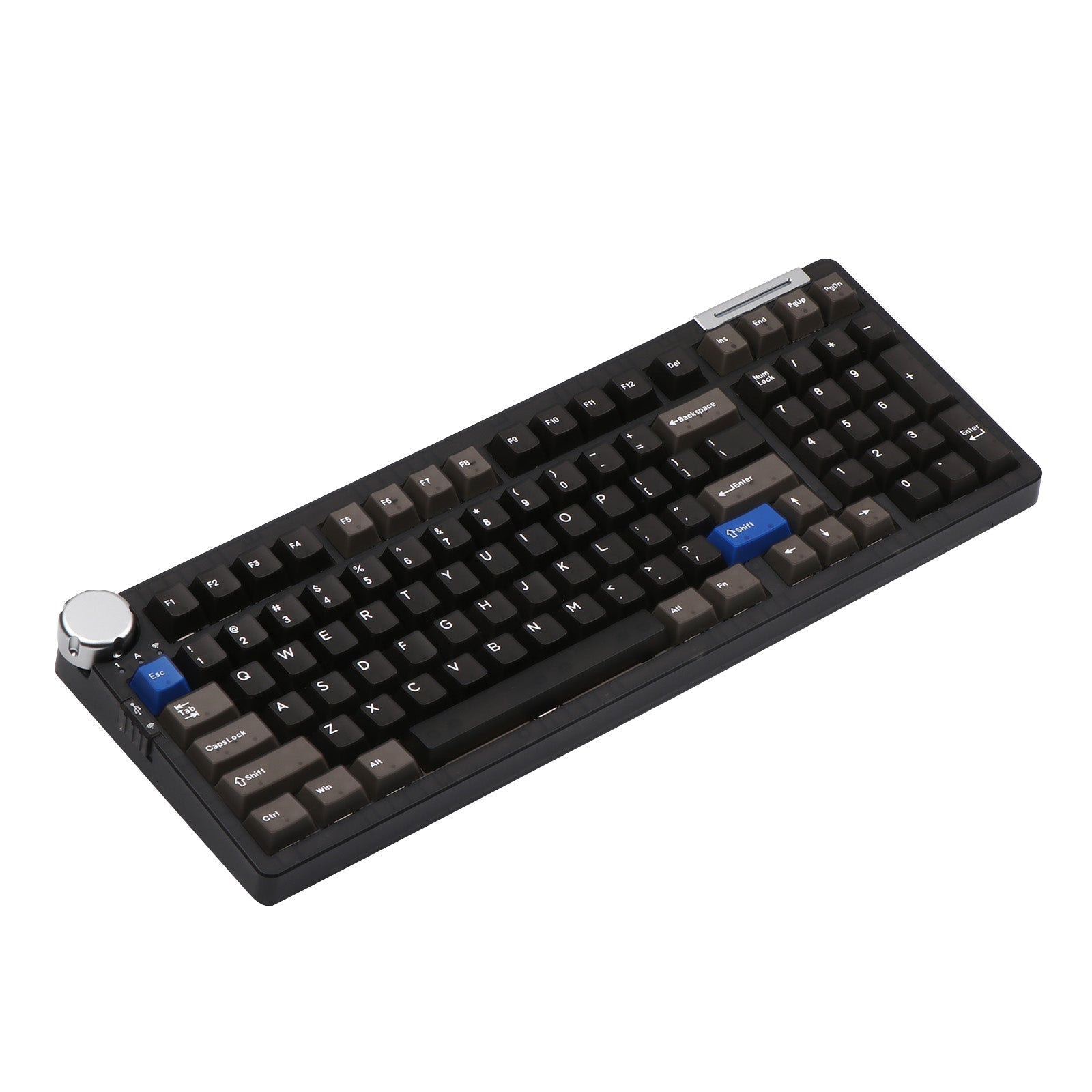

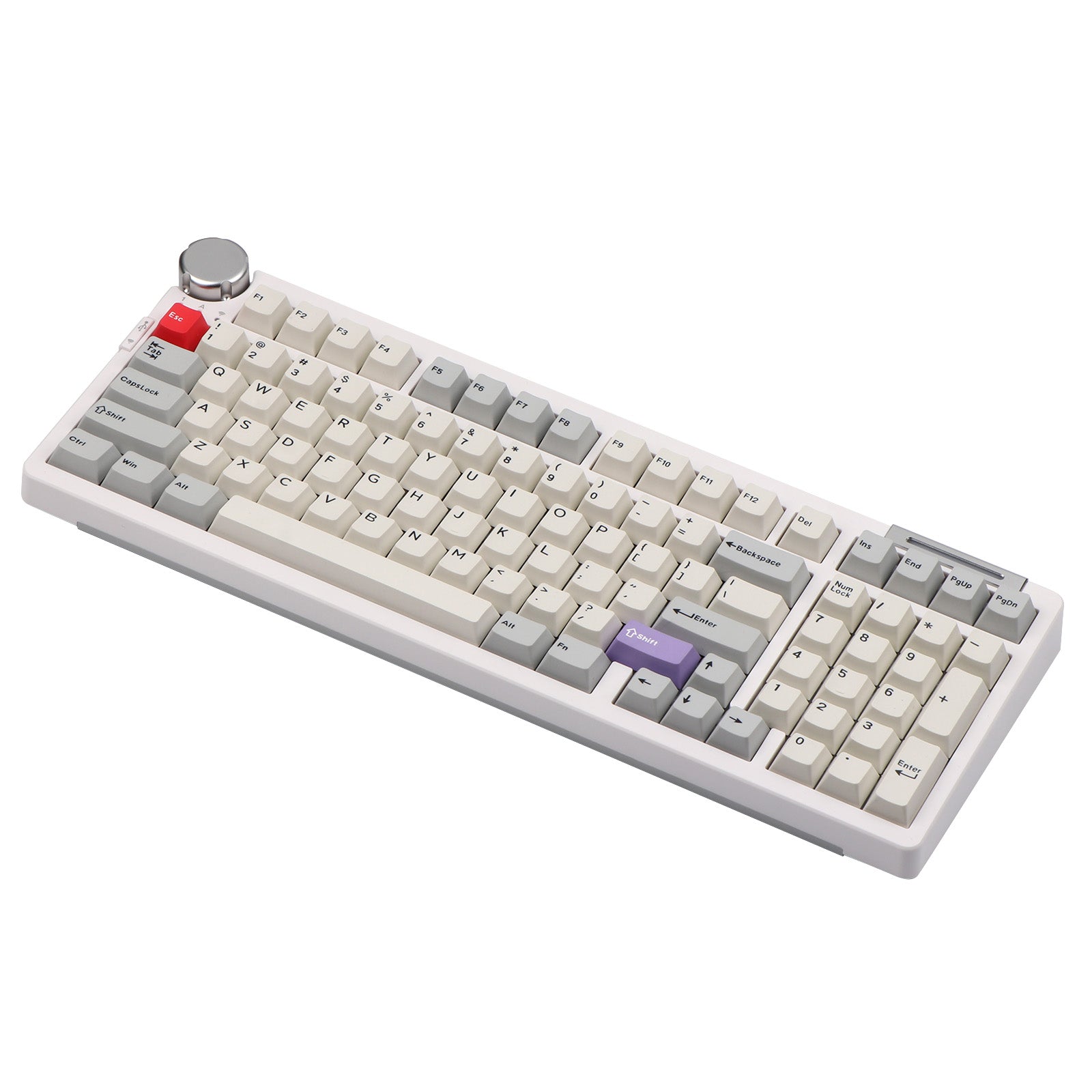

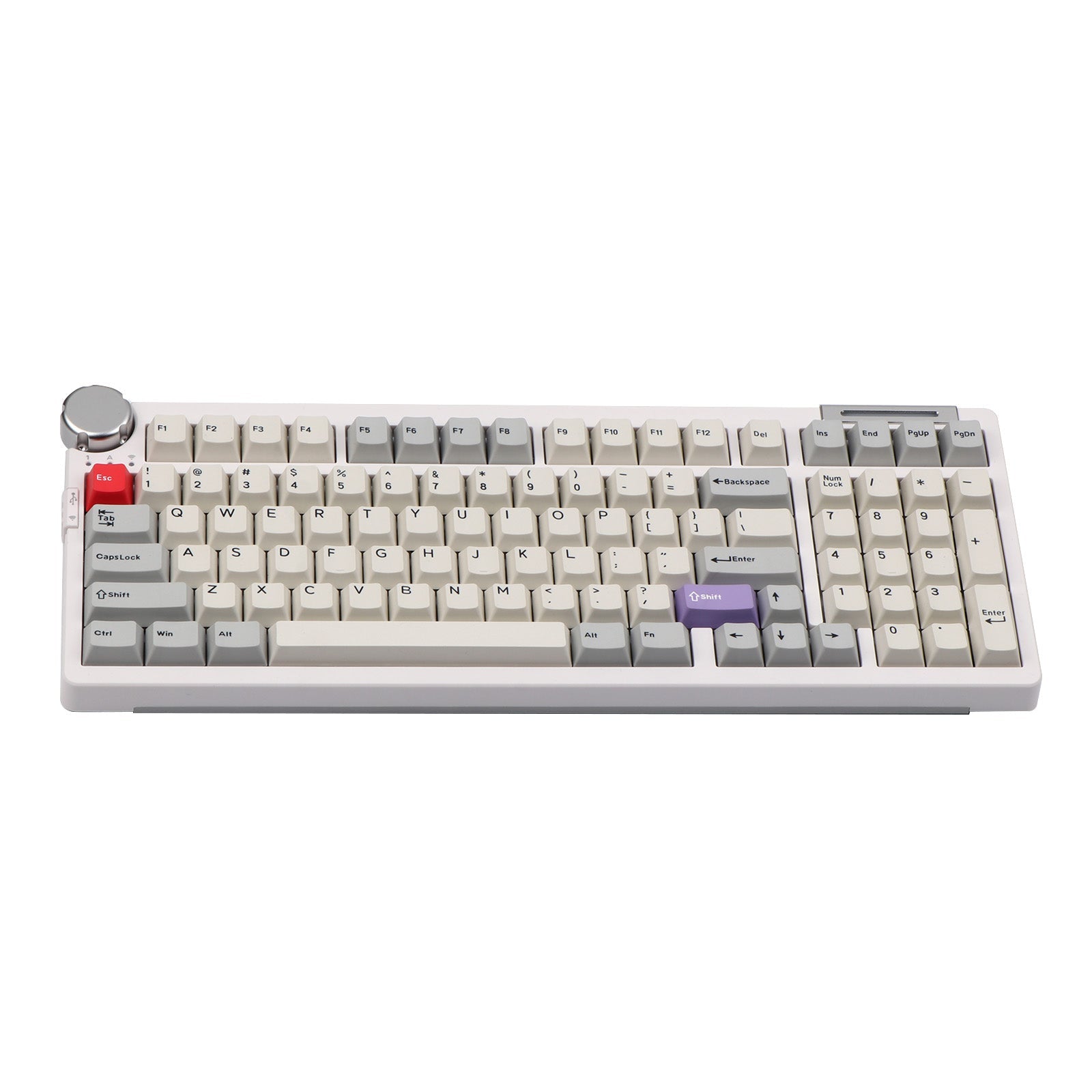

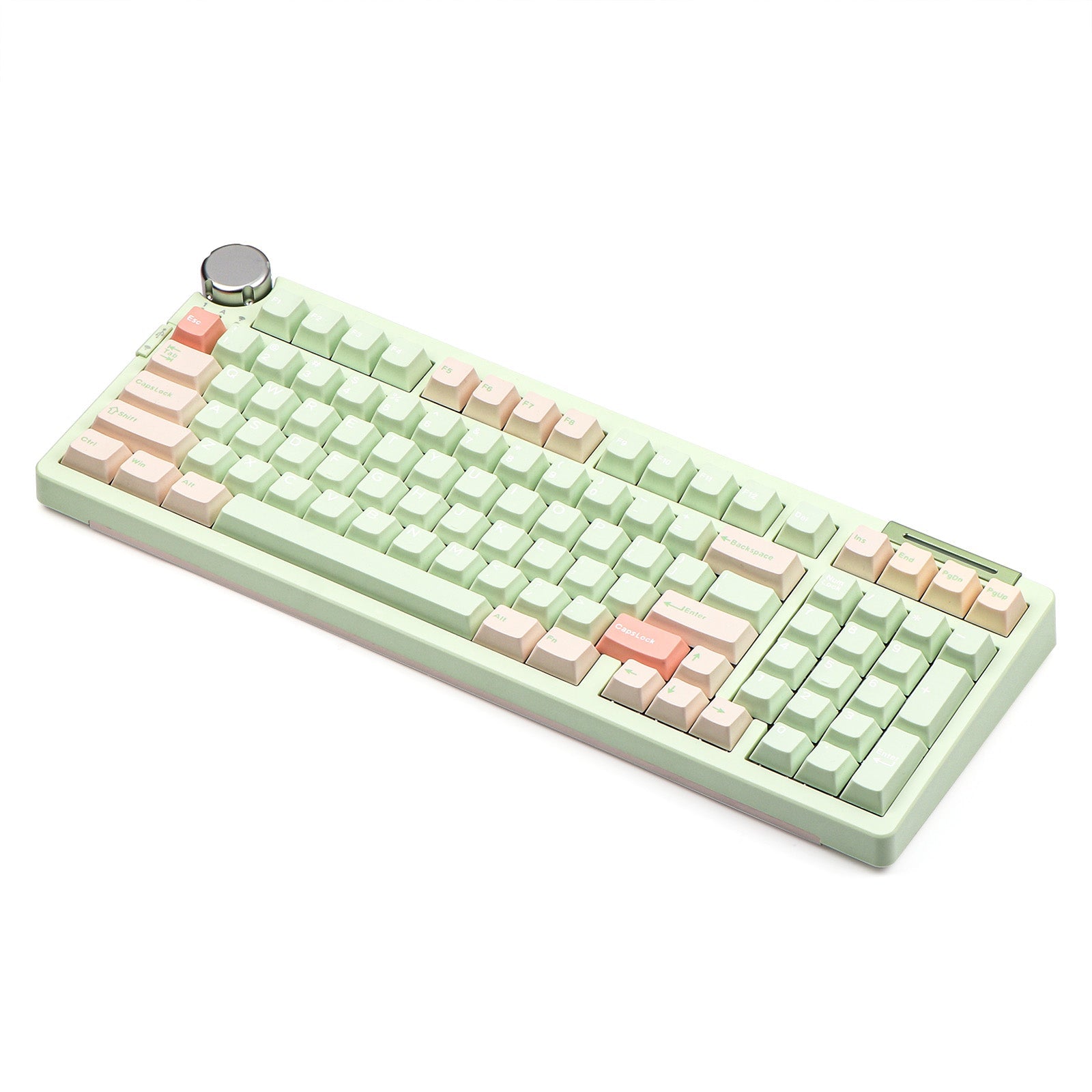

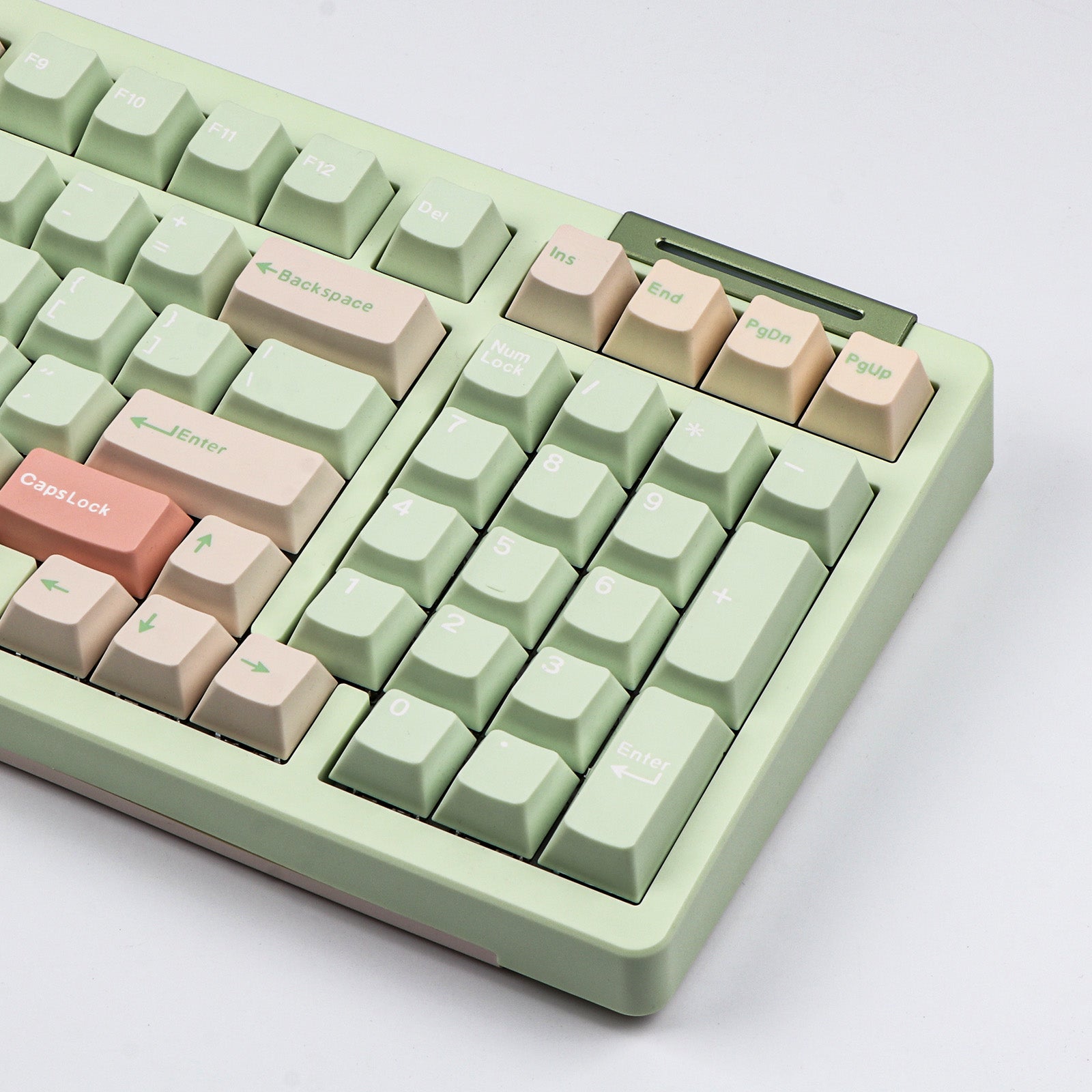

1800 Compact Mechanical Keyboard

Missing a numpad for office working? CIDOO ABM098 saves you the fuss to buy another numpad! Coming in 1800 compact, the keyboard comes with a numpad that can be necessary for many people, as well as the main alpha area and some additional cursor keys. Still, the keyboard is saving space for the mouse area compared with a full-size keyboard.

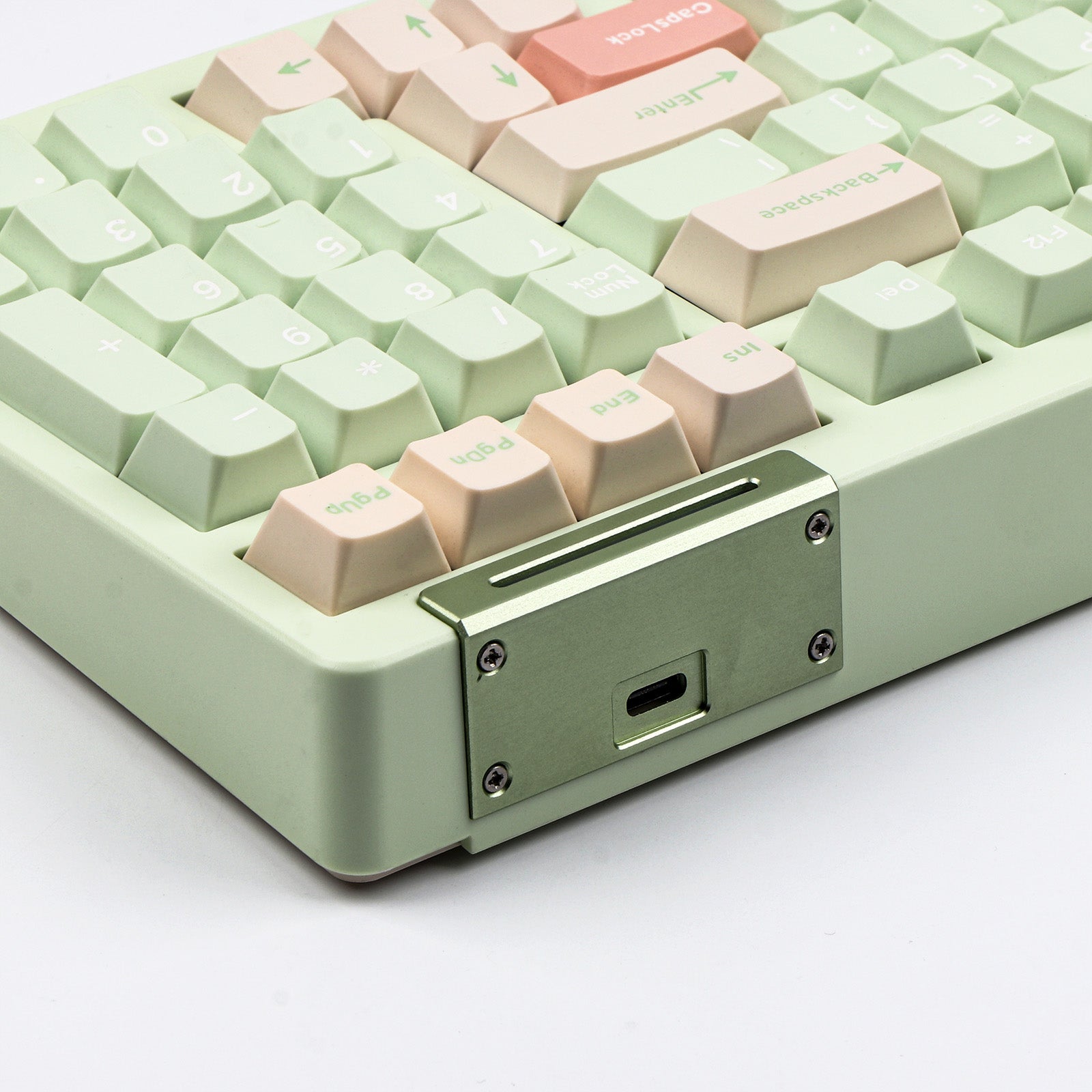

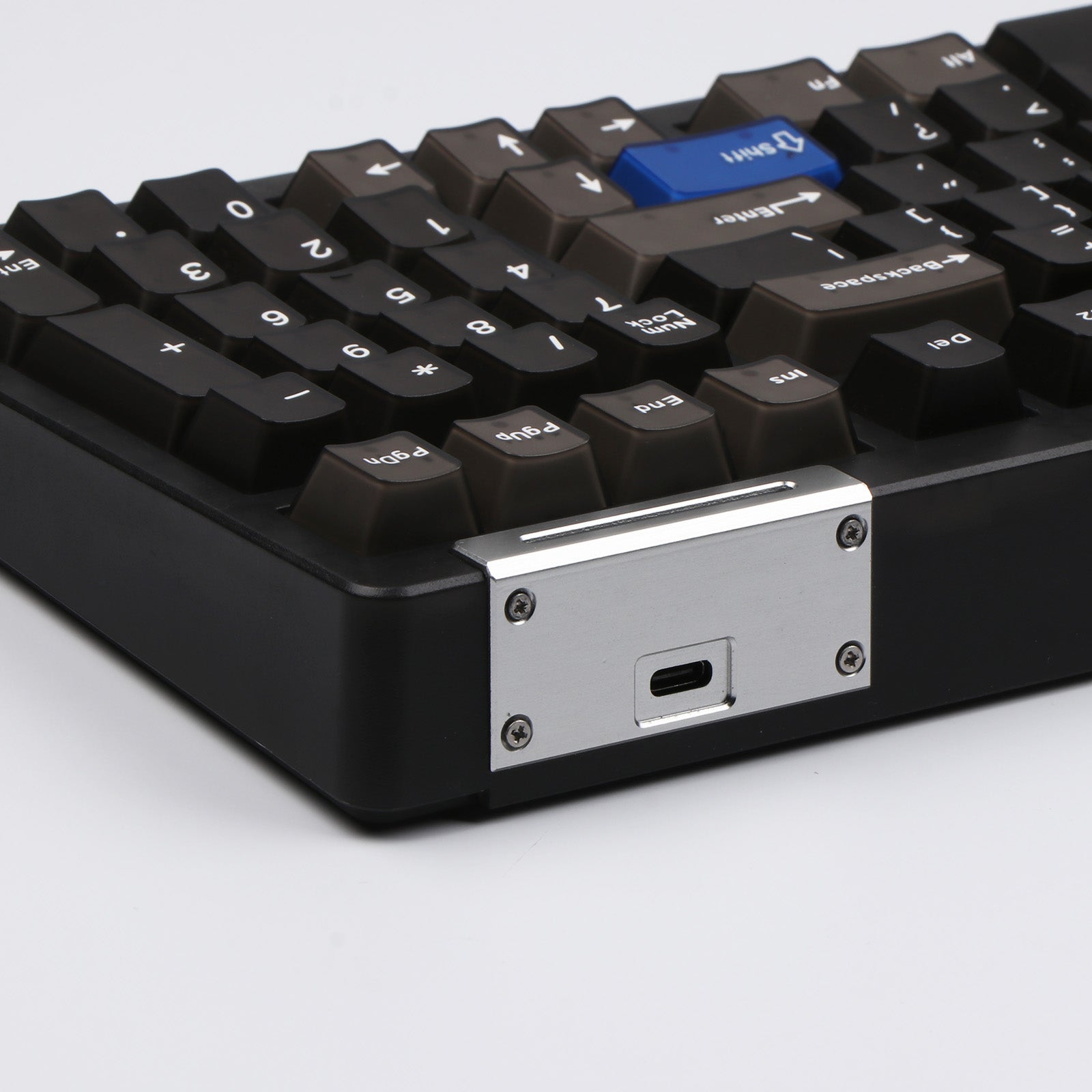

Wired or Bluetooth Wireless Connectivity

With built-in 3000mAh battery, the keyboard supports connection via Bluetooth wireless connectivity, as well as with the included Type-C USB cable. The keyboard can be connected up to 3 device and each device can be easily. With Bluetooth connection, it easily connects seamlessly to your devices without messy cables.

Gasket-Mounted, Poron PCB Foam & IXPE Switch Sheet

Gasket mounting is a type of keyboard mounting, where no screw are used into the switch plate. With the high-quality Poron PCB foam and IXPE Switch that aim to dampen noises, the keyboard creates a cleaner sound profile because the gaskets cushion the shock of each keypress.

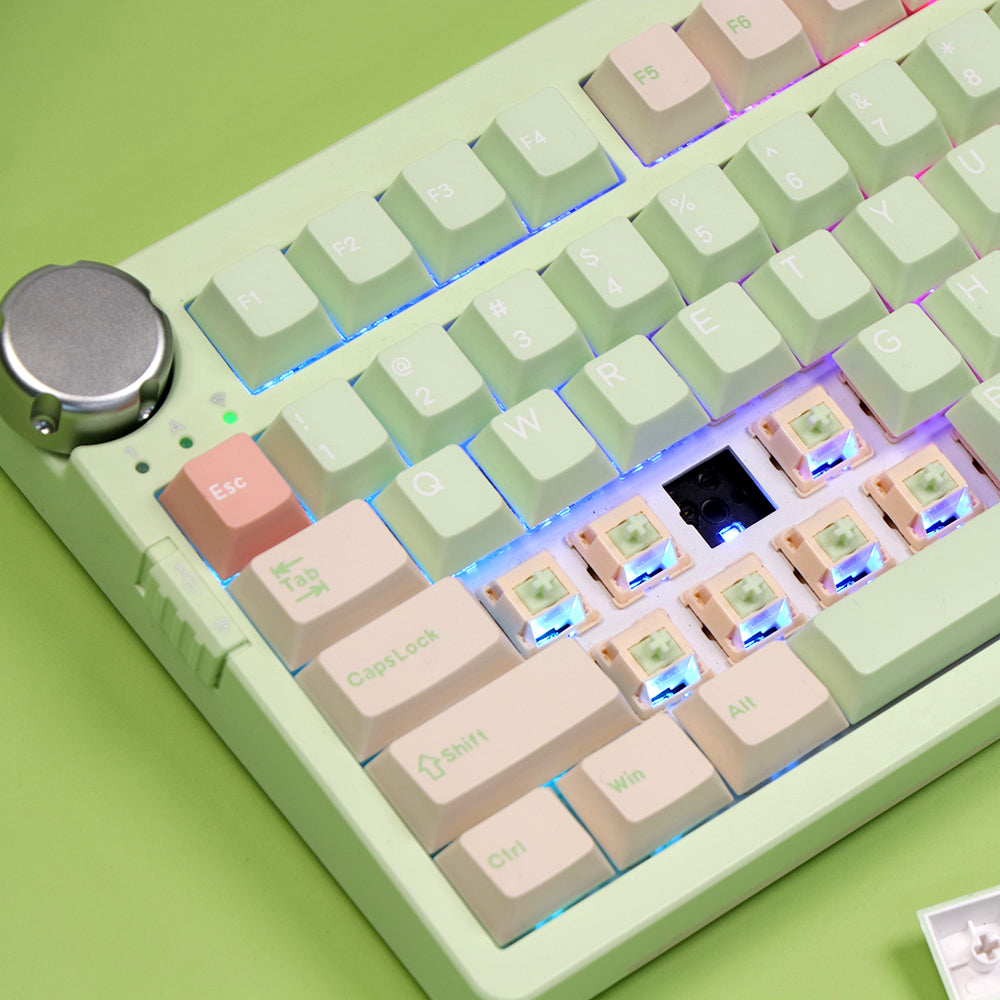

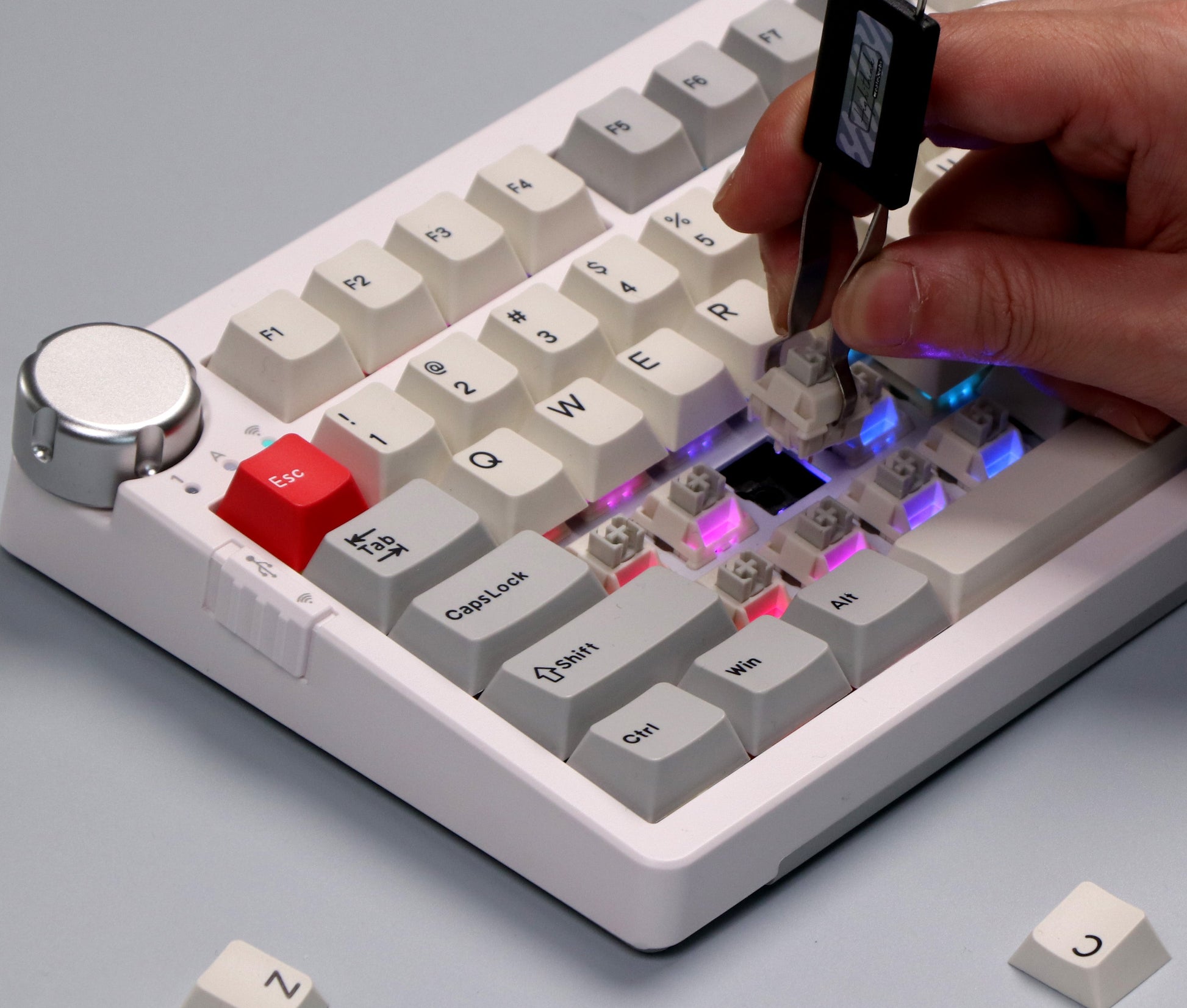

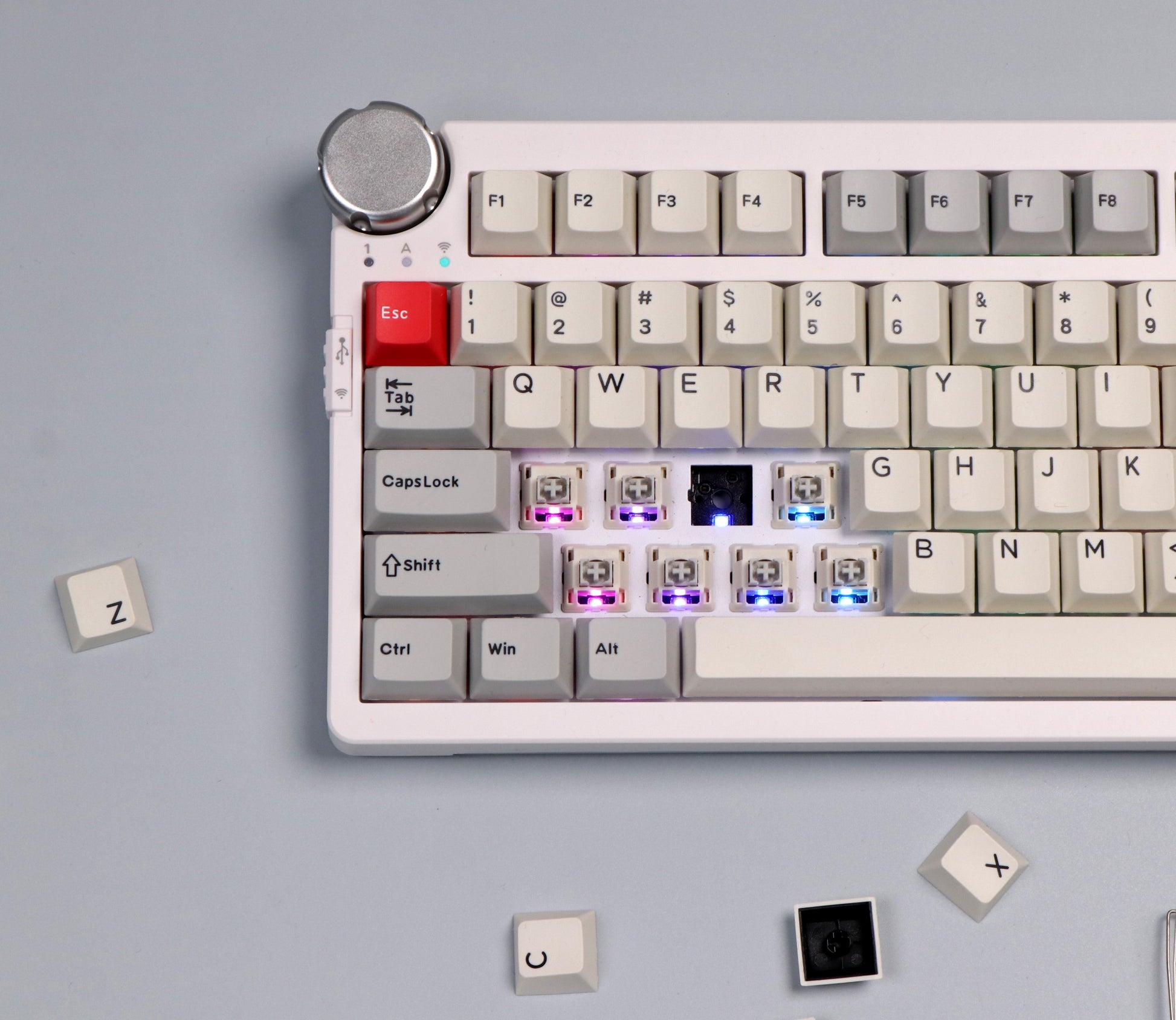

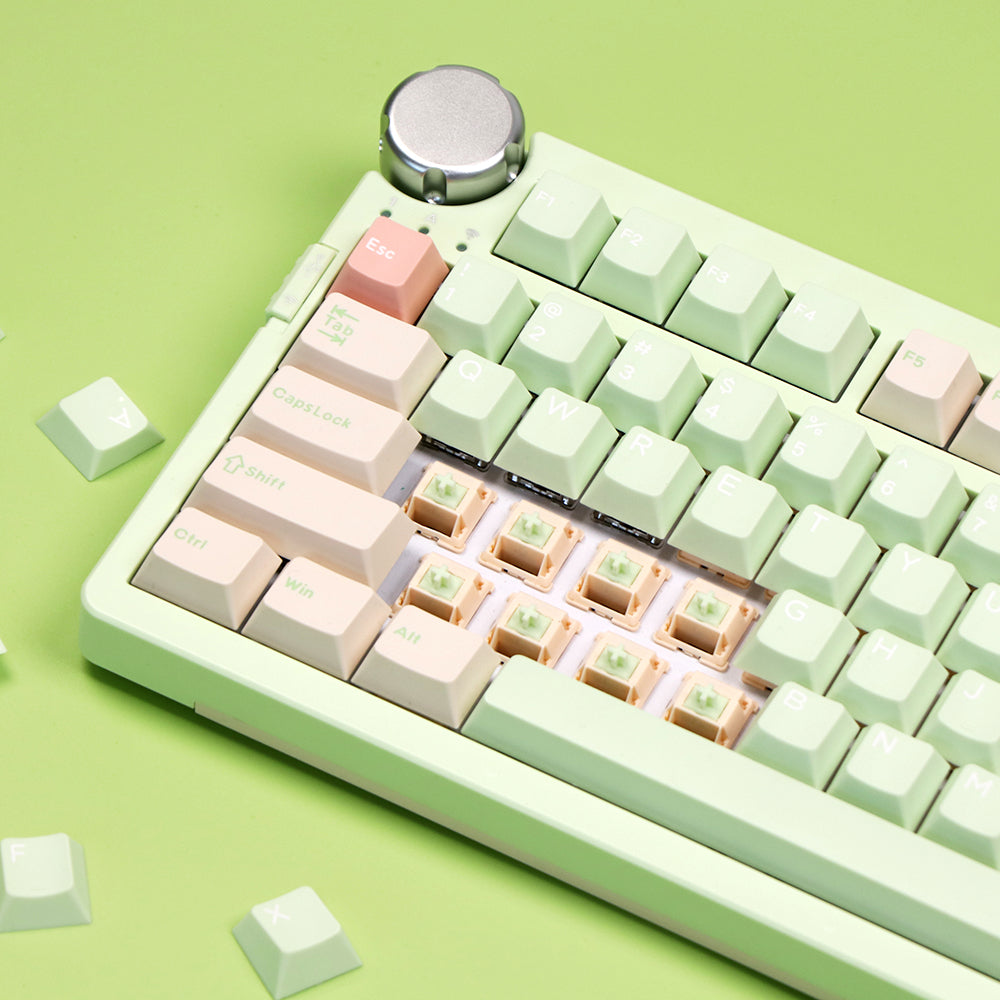

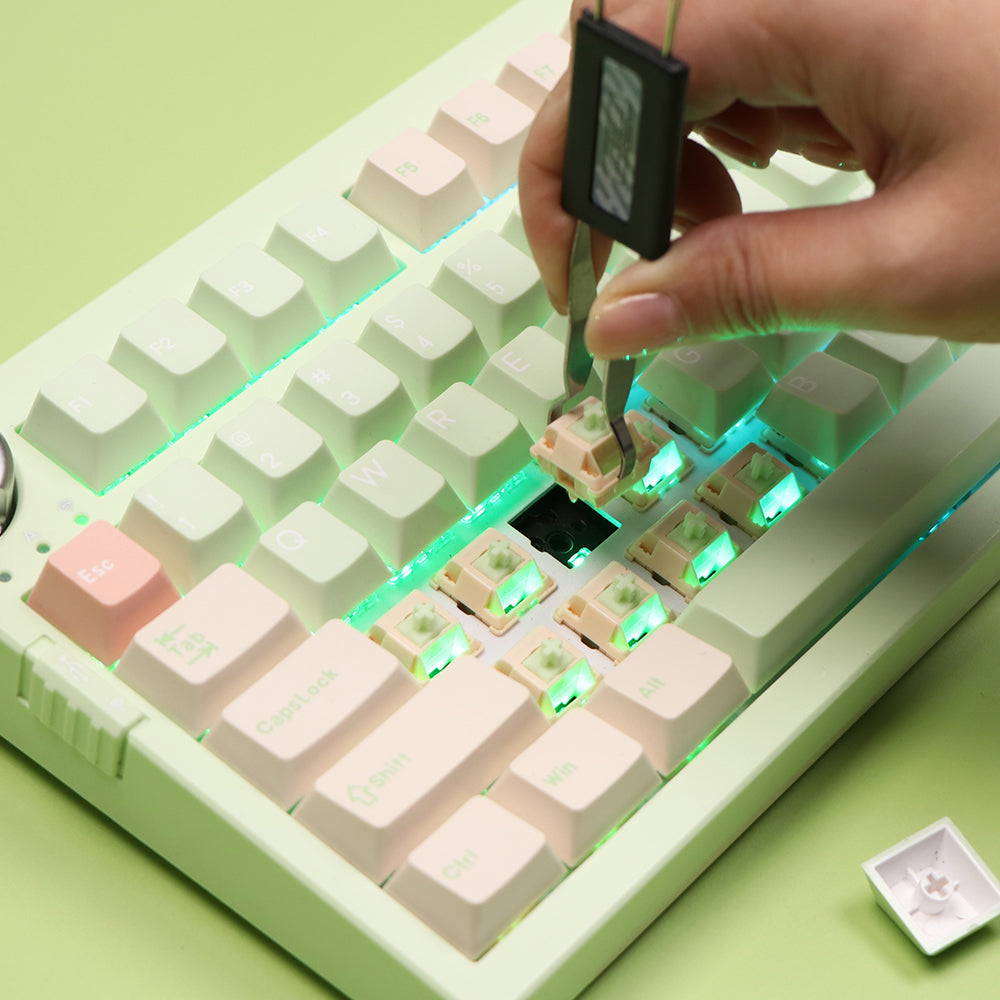

Customized Linear Switches with & Hotswappable

The switches in the keyboard are Quark Matte switches that features linear typing experience and 47g operating force, CIDOO Mint 48g and CIDOO Blue-through switch 55g. Being factory lubed, the switches are durable and attribute to creating clear acoustic environment. The keyboard is equipped with hot-swappable PCB that supports 3-pin and 5-pin mechanical switches. Hot-swappable PCB is convenient for replacing other mechanical switches freely without soldering issue. By swapping the switches, you can build your own keyboard that fits your typing habits easily.

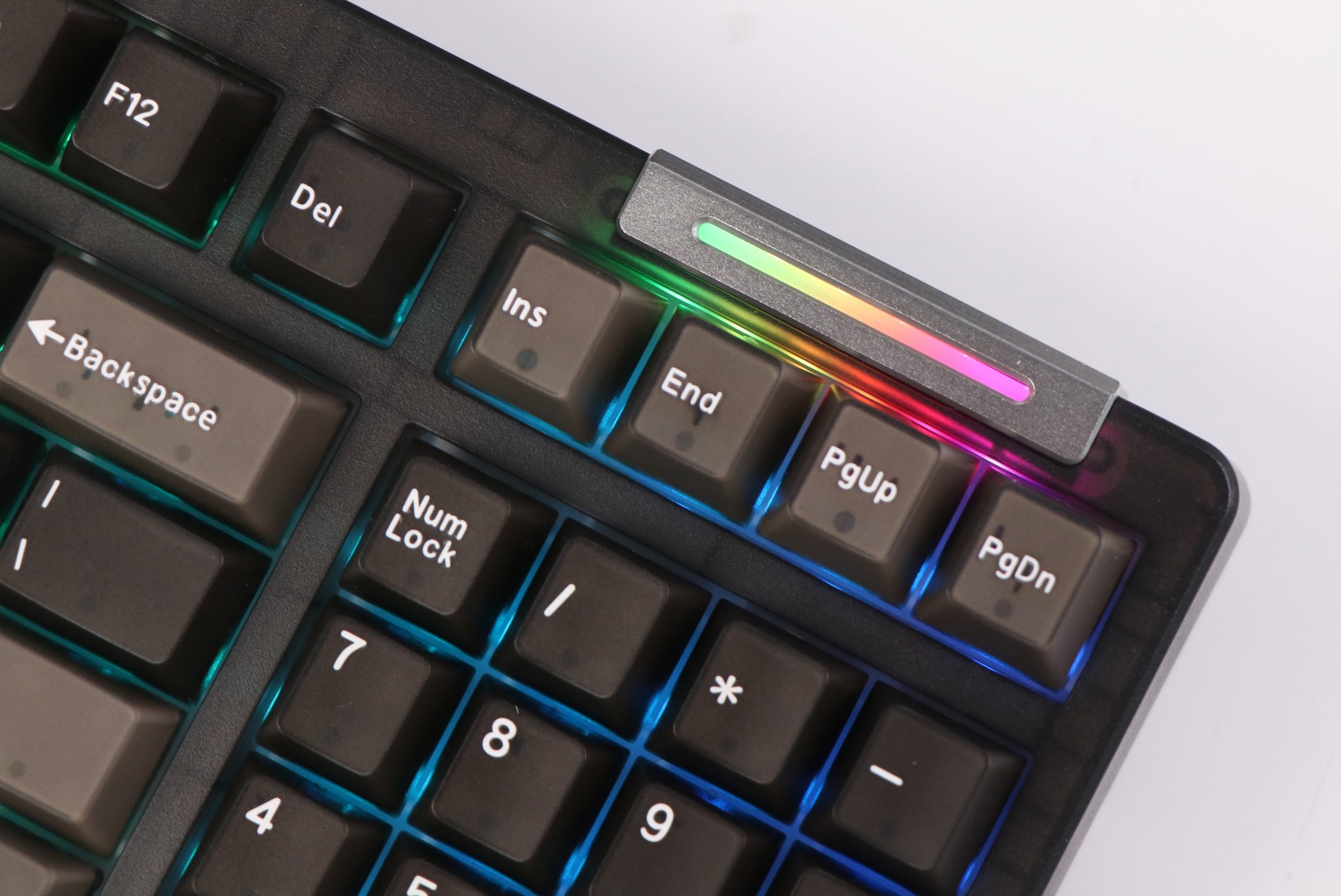

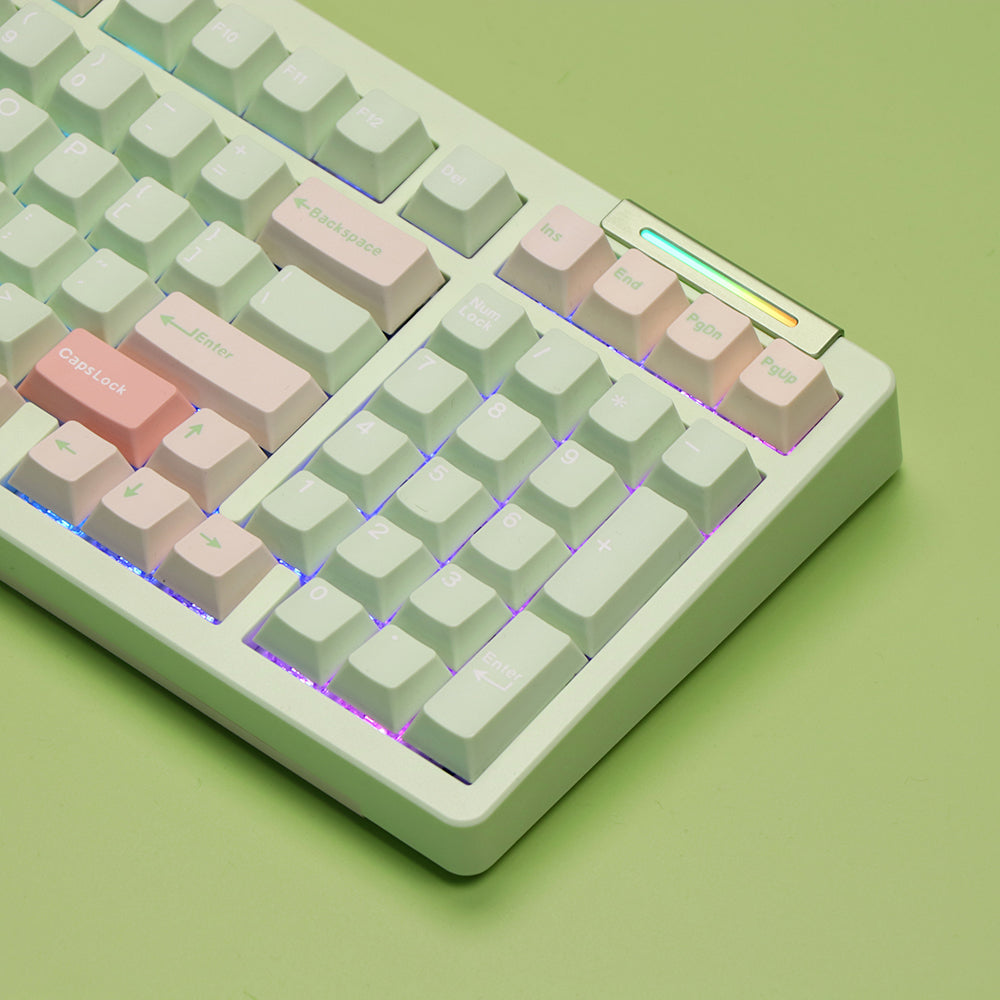

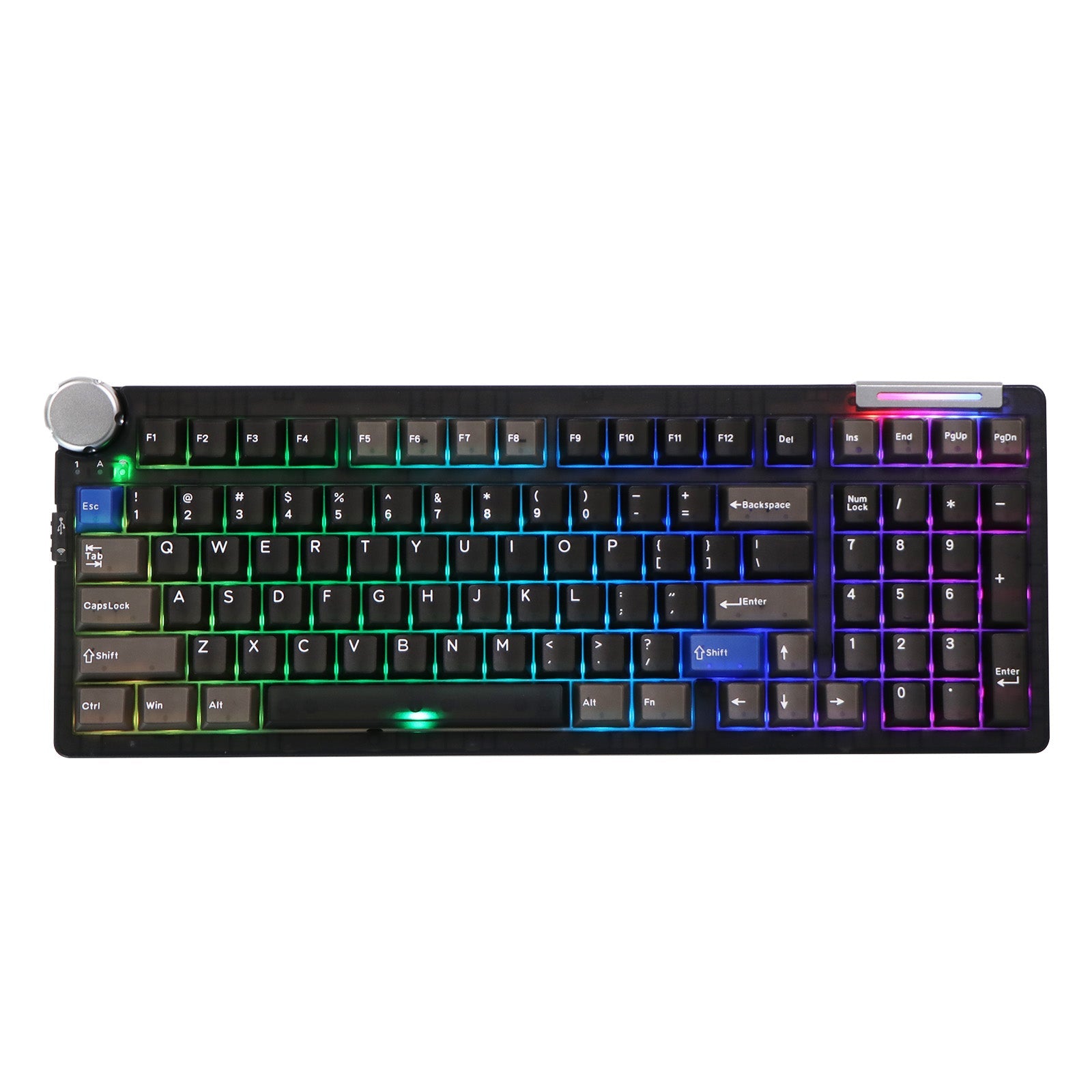

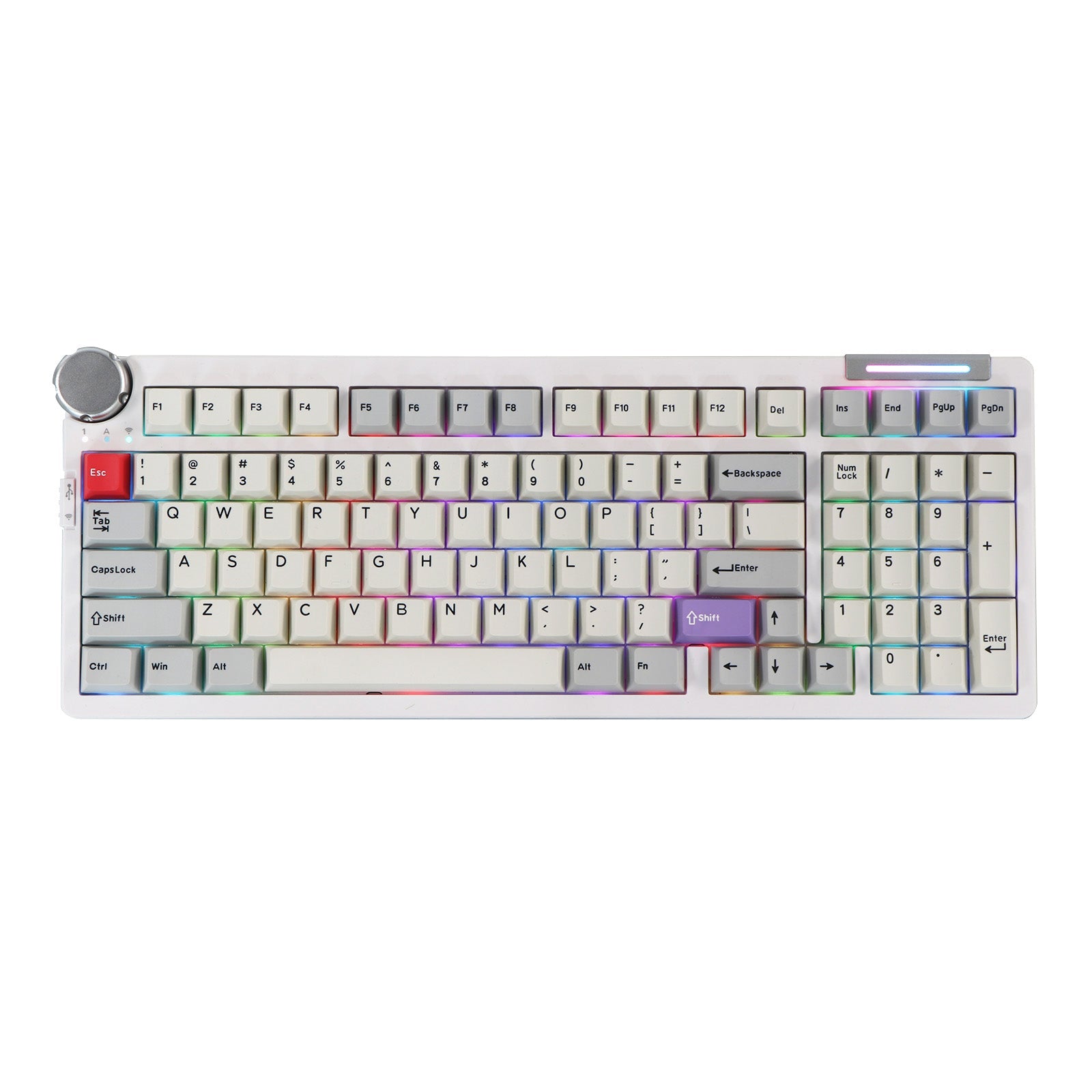

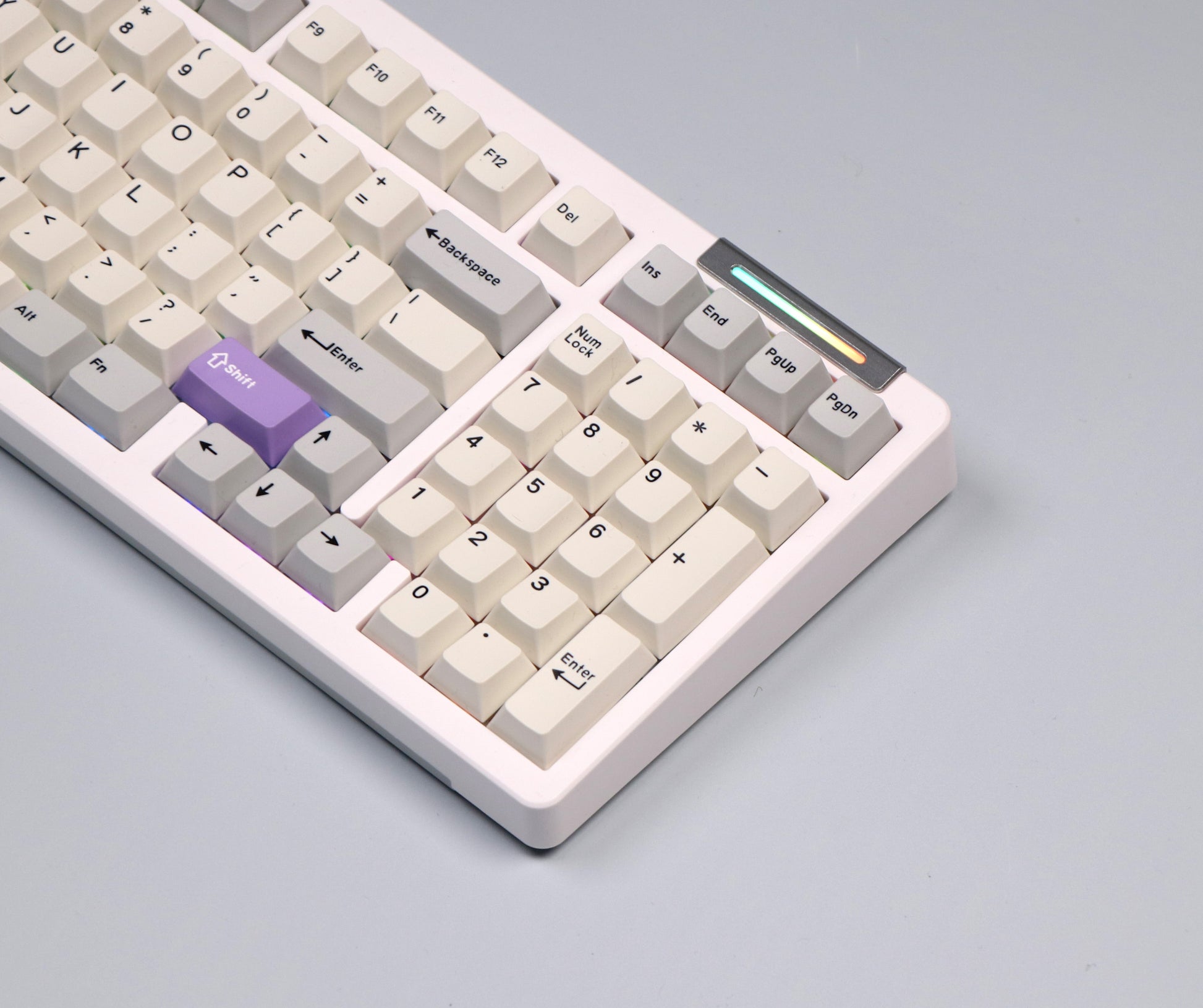

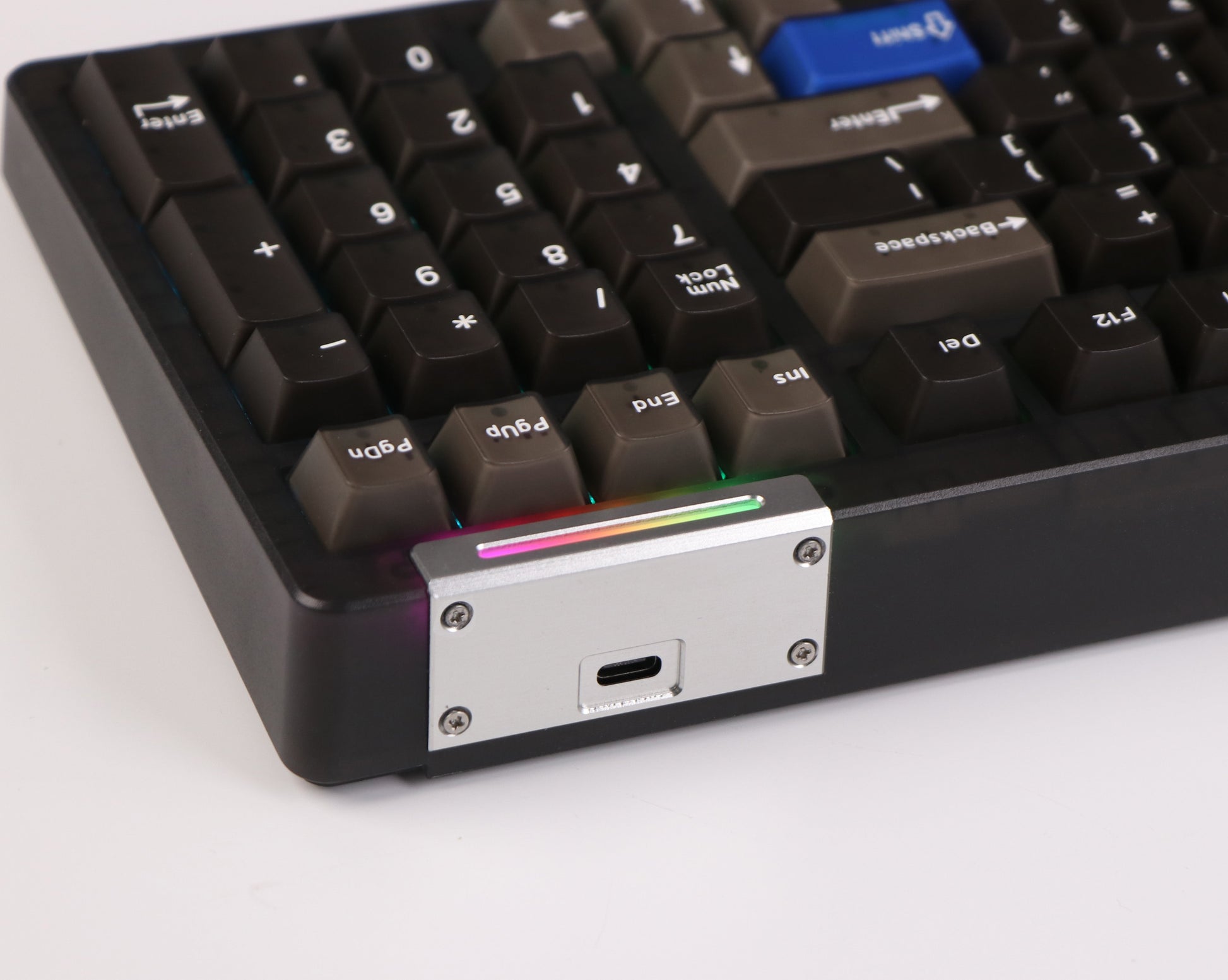

South-facing LEDs & Light Diffusers

CIDOO ABM098 features RGB backlights that are also customizable. With south-facing LEDs, the keyboard avoids the interference with the popular cherry profile keycaps. What¡¯s more, the keyboard comes with light pipes which make the RGB lights brighter and bring more fun for customization.

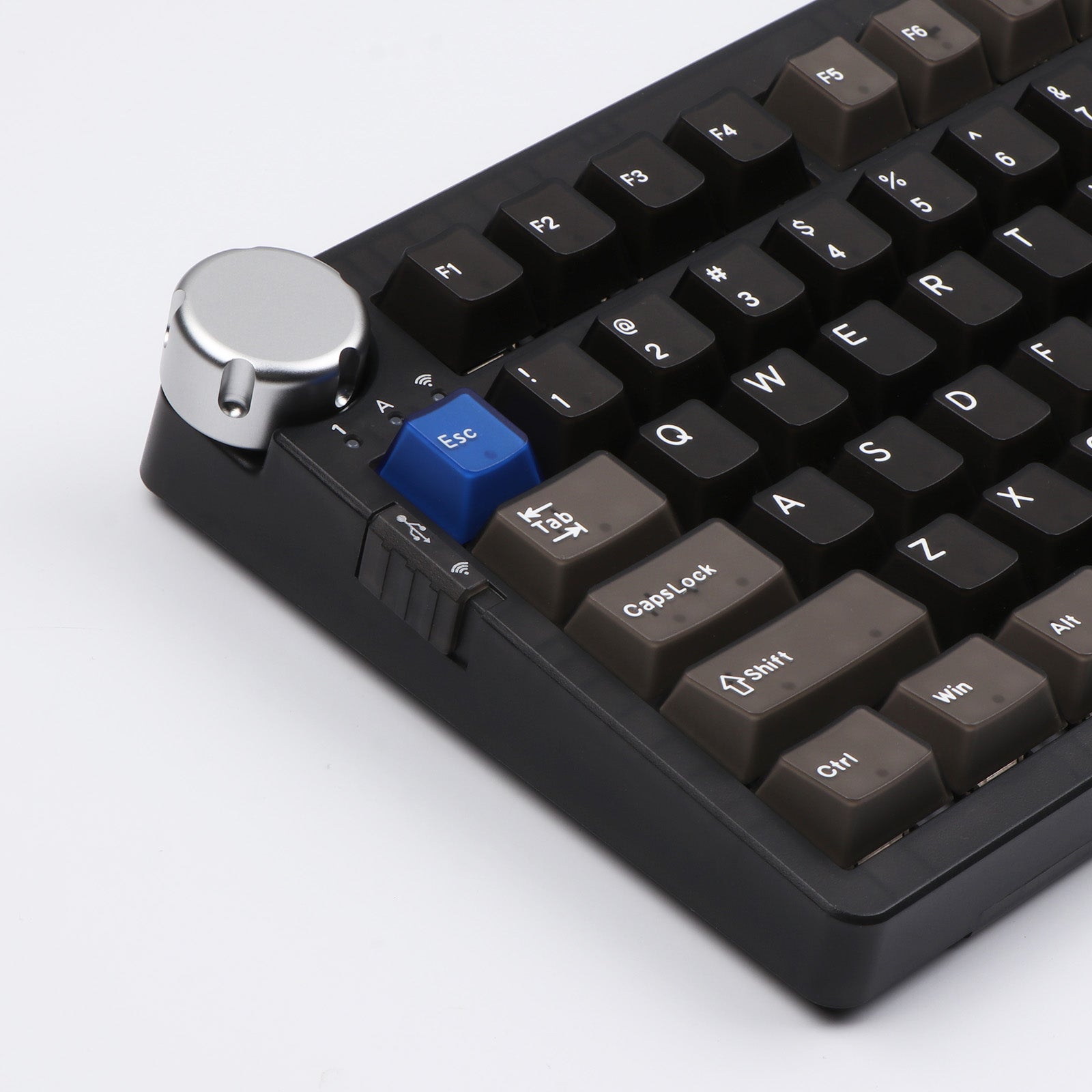

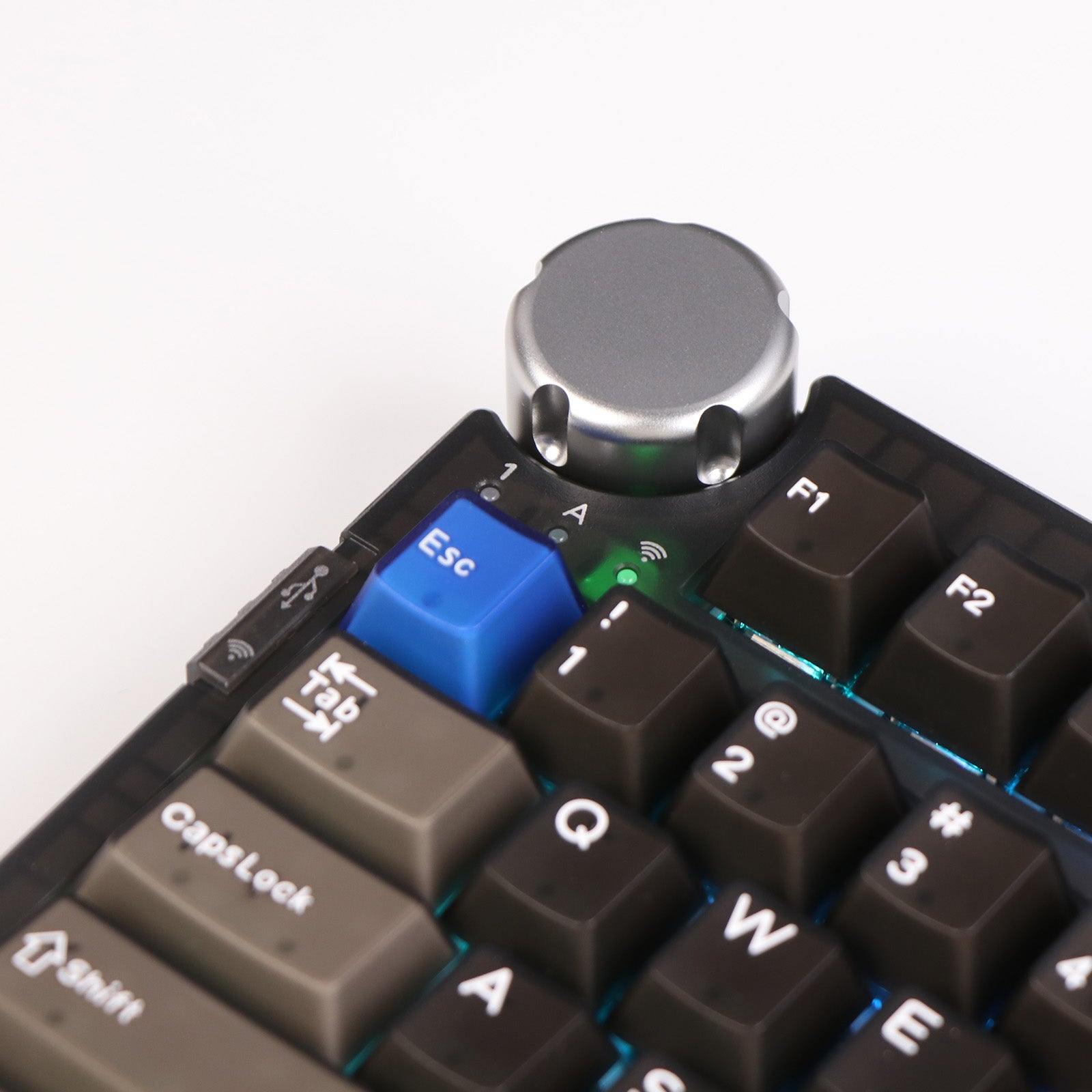

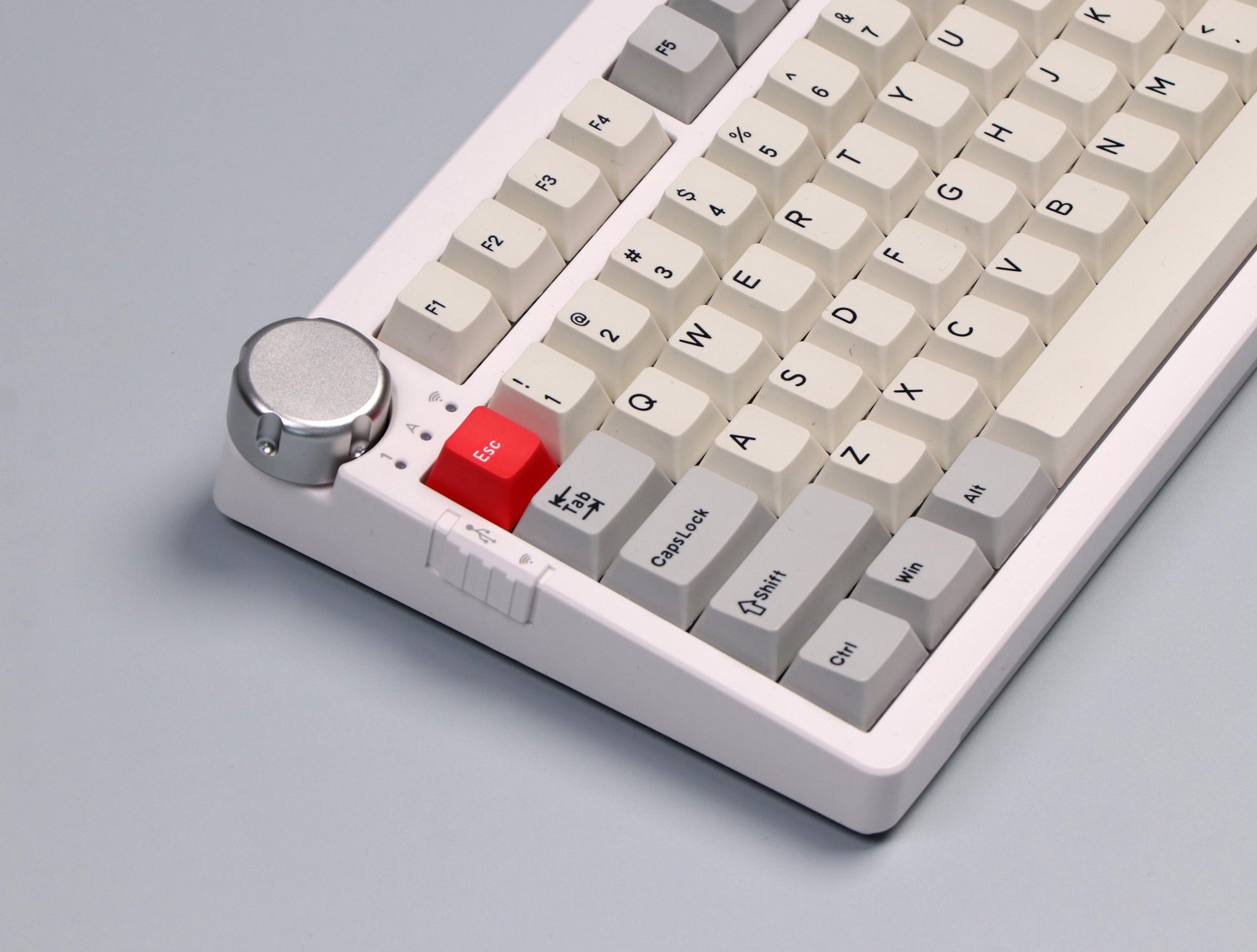

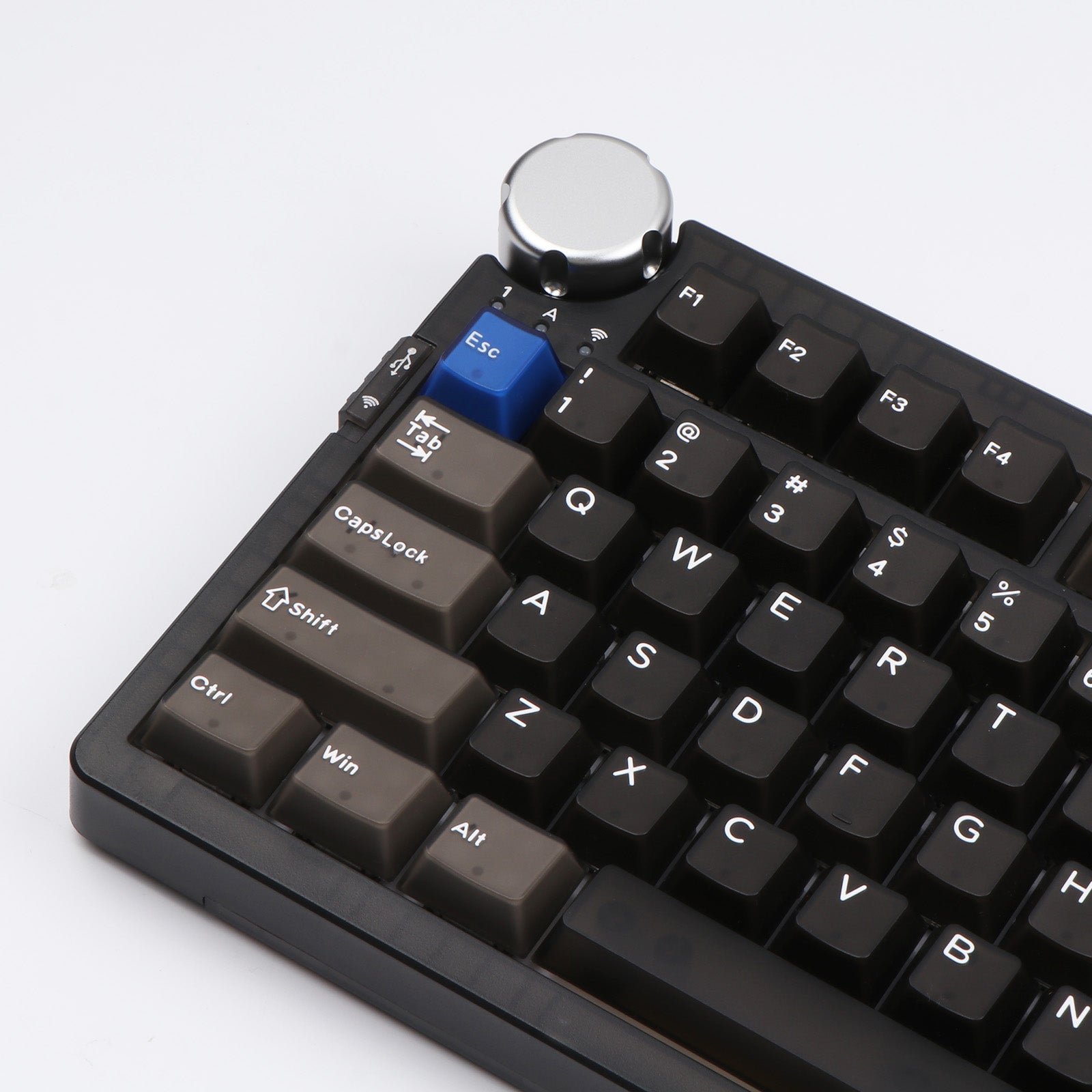

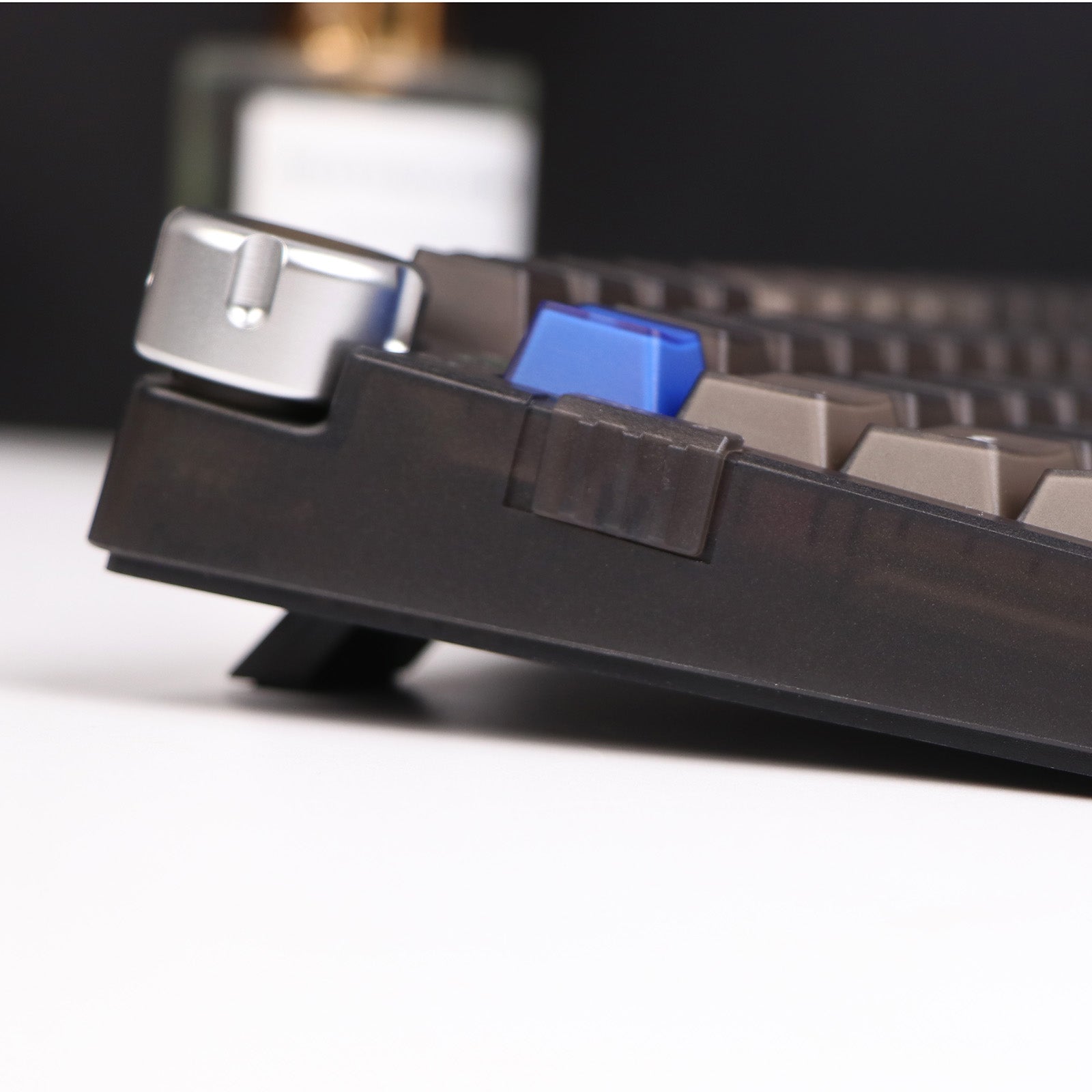

Rotary Knob for Media Control & NKRO Supportable

CIDOO has listened to the community that the knob on V65 is too small, and so ABM98 is designed with a noticeable knob to control volume! By simply rotate left, right and press, the keyboard can turn the system volume up, down and muted. As for anti-ghosting, the keyboard is NKRO.

Specs of CIDOO Custom Switches
CIDOO Matte Switch
  • Type: Linear
  • Housing: Nylon
  • Stem: POM
  • Operation Force: 47g
  • Bottom Force: 60g
  • Spring: 20mm
  • Compatible with light pipes
  • CIDOO Mint Switch
  • Type: Linear
  • Housing: Nylon
  • Stem: POM
  • Operation Force: 48g
  • Bottom Force: 57g
  • Spring: 20mm
  • Compatible with light pipes
  • CIDOO Blue-through Switch
  • Type: Linear
  • Housing: Nylon
  • Stem: POM
  • Operation Force: 55g
  • Bottom Force: 59.5g
  • Spring: 20mm
  • Compatible with light pipes
  • Technical Specifications

    Model
    CIDOO ABM098 VIA
    Mount Type
    Gasket Mount
    Keys Amount
    97 keys + 1 knob
    Case Material
    ABS Plastic
    Plate Material
    Steel
    Stabilizer Type

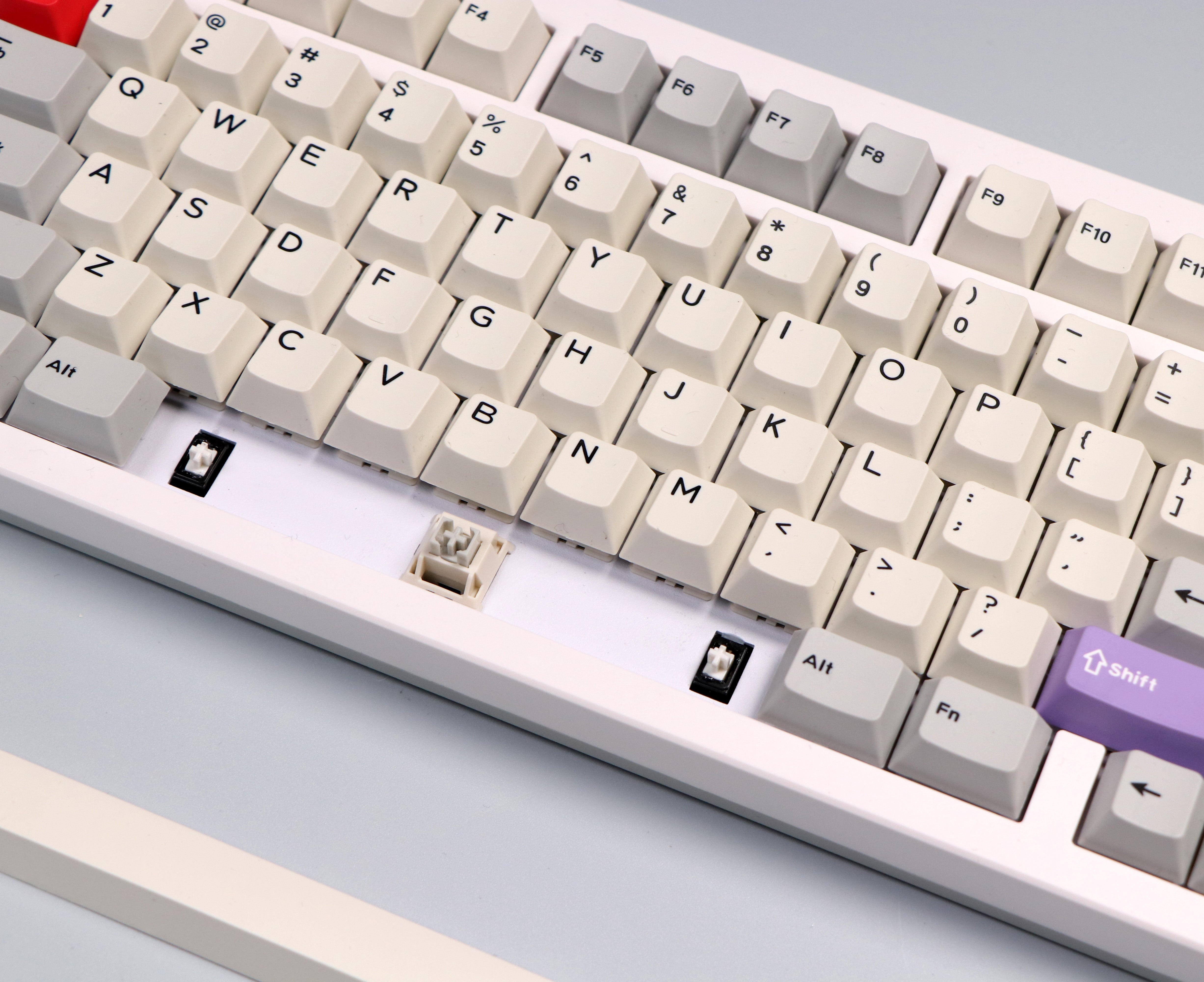

  • 2u stabilizers: Plate-mounted
  • Spacebar: Screw-in
  • PCB Type
    Hotswap PCB (5 pin & 3 pin)
    LED Facing
    South-facing
    Keycaps Material
  • Black – ABS+PBT Double-shot
  • Green & Grey – PBT Double-shot
  • PCB Foam Material
    Poron
    Switch Sheet
    IXPE
    Bottom Foam
    Silicone
    Battery capacity
    4000mAh
    Backlight
    16.8M RGB backlight, RGB music rhythm
    Connectivity
    Bluetooth 5.0 and Type-C
    N-Key Roll Over
    Support
    Software
    Programmable with VIA
    Product dimension
    387.7*147.2*41.1mm
    Product weight
    Around 1.45kg
    Inside the box
    • Keyboard
    • Instrusction Manual
    • Keycap-switch pull
    • Type-C Cable
    • 2.4G Receiver
