65% 68 Keys Hot Swappable RGB 2.4Ghz/Bluetooth/Wired Mechanical Gaming Keyboard Programmable DIY Kit

  • 65% 68 Keys DIY Keyboard Kit
  • 3-Pin & 5-Pin Hot Swappable
  • Three Modes of Connectivity: Bluetooth 5.0 & 2.4GHz & Type-C Cable
  • RGB Effects & Programmable with Included Software
  • Compatible with Windows & Mac OS
Frosted White
Regular price $69.99
Sale price $69.99 Regular price

Free standard shipping to most countries

Enjoy free shipping to most countries*. Please refer to our shipping FAQ to see if you apply.

7-Day Return Policy

You may return any non-customized and non-sales product that is sealed, within the 7 days upon receiving it.

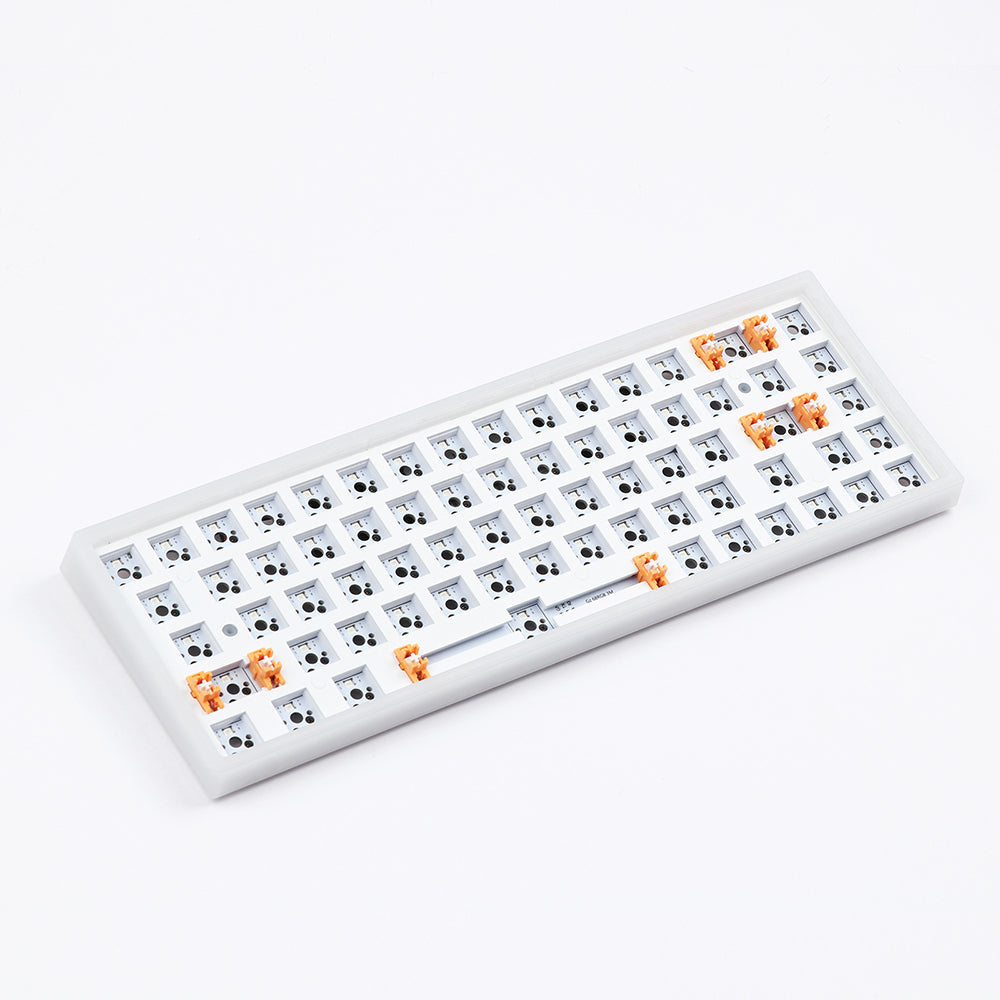

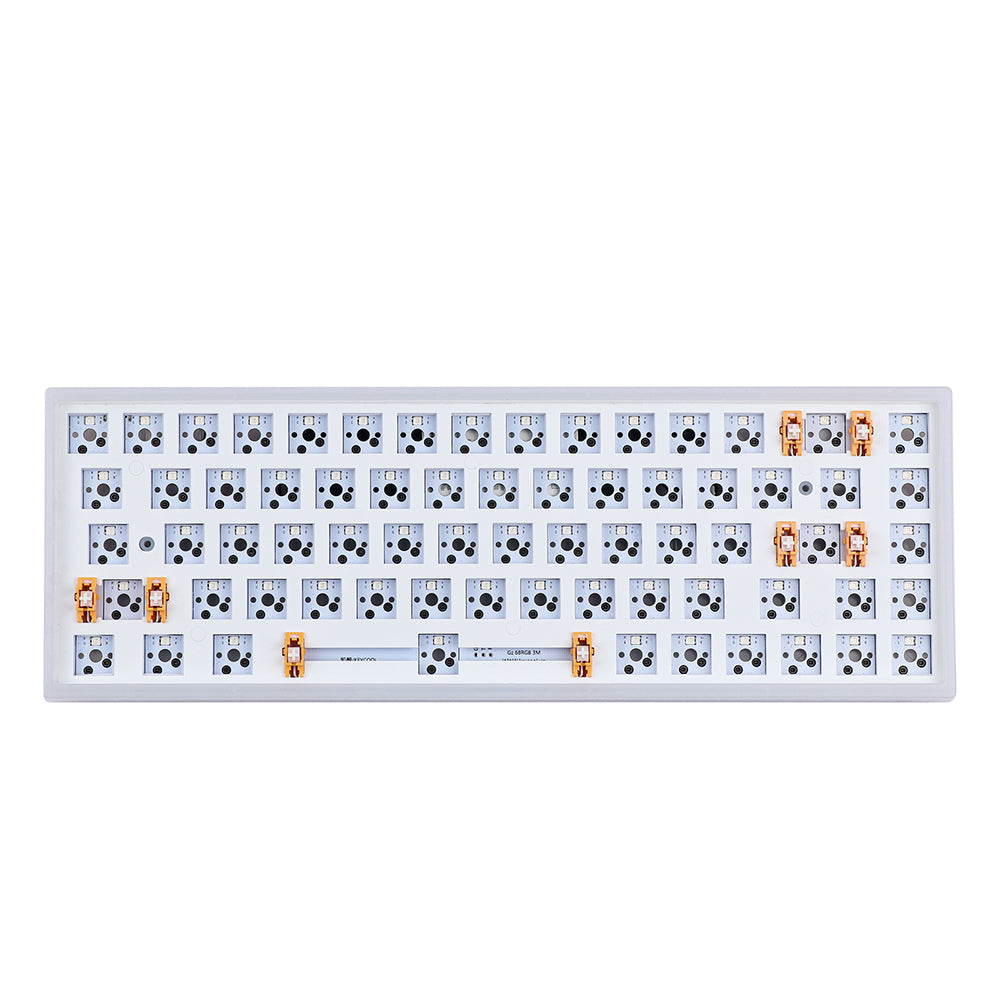

65% 68 Keys Mechanical Gaming Keyboard Kit

With built-in modularity for everything from connectivity to switches, the EP68 from EPOAMKER is a compact keyboard kit for those who like to change things up and will make a great addition to any desk setup. Being 65% layout, it includes dedicated arrow keys and an extra row of keys along the right-hand side of the board, which includes page up/down/home/delete, etc.

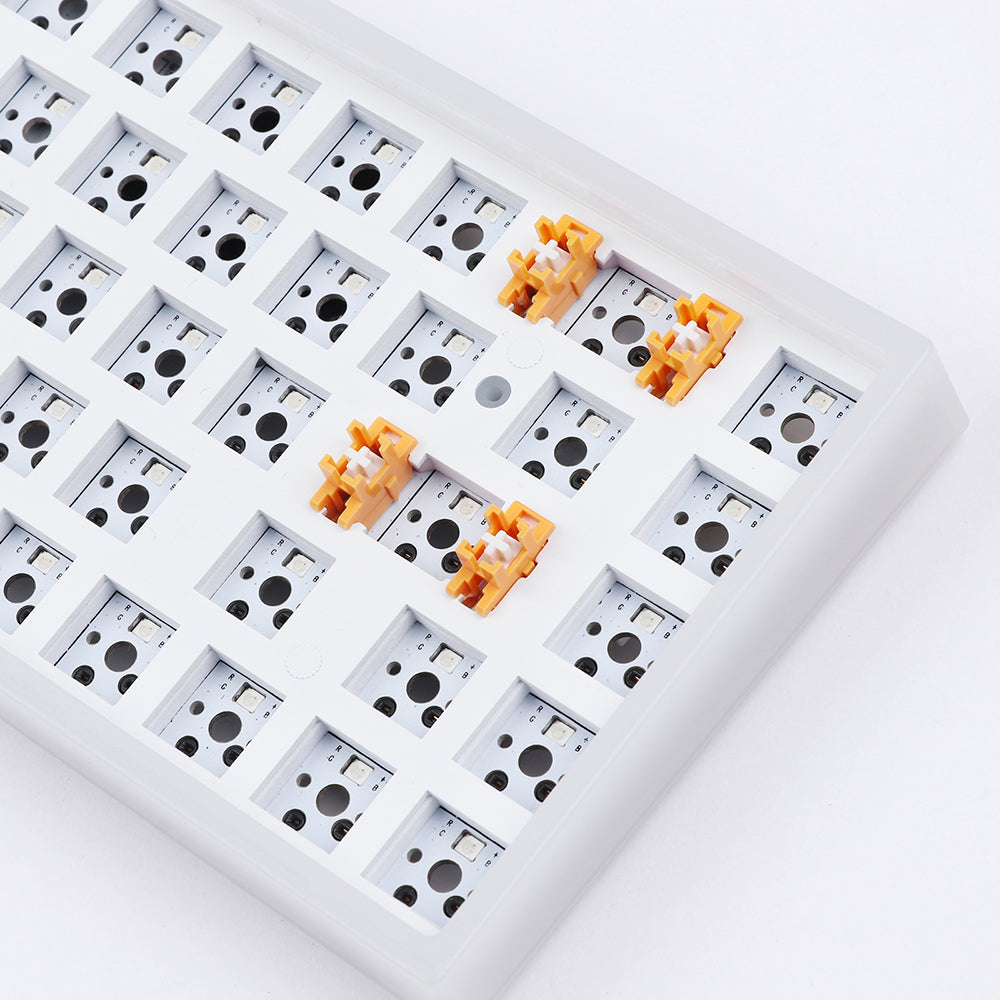

3-Pin & 5-Pin Hot Swappable

Thanks to the hot-swappable sockets, EP68 DIY kit can accommodate a variety of switches, both 3 and 5-pin, such as Cherry, Otemu, AKKO, Gateron, etc. Being hot-swappable means that you can easily change switches and install it without soldering issue. This is a great convenience for new mechanical keyboard enthusiast.

Three Modes of Connectivity: Bluetooth 5.0 & 2.4GHz & Type-C Cable

Equipped with a 3100mAh battery, this keyboard kit supports wireless and wired connections. By the wireless option, either Bluetooth (up to 5.0) or 2.4GHz can be chosen. By the wired mode, macro can be programmed to better fit your typing habits. The modes can be easily switched by Fn+Q/W/E(Bluetooth) / R(2.4GHz) / T(USB Wired).

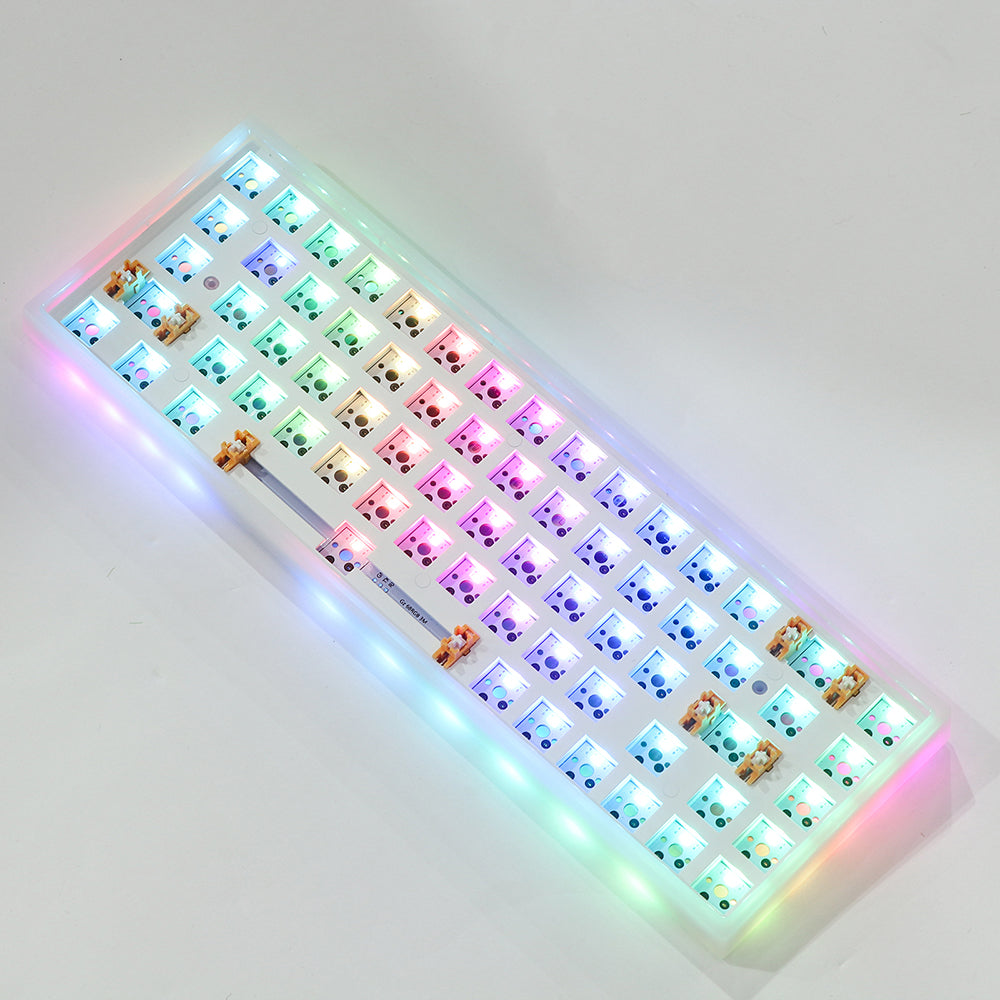

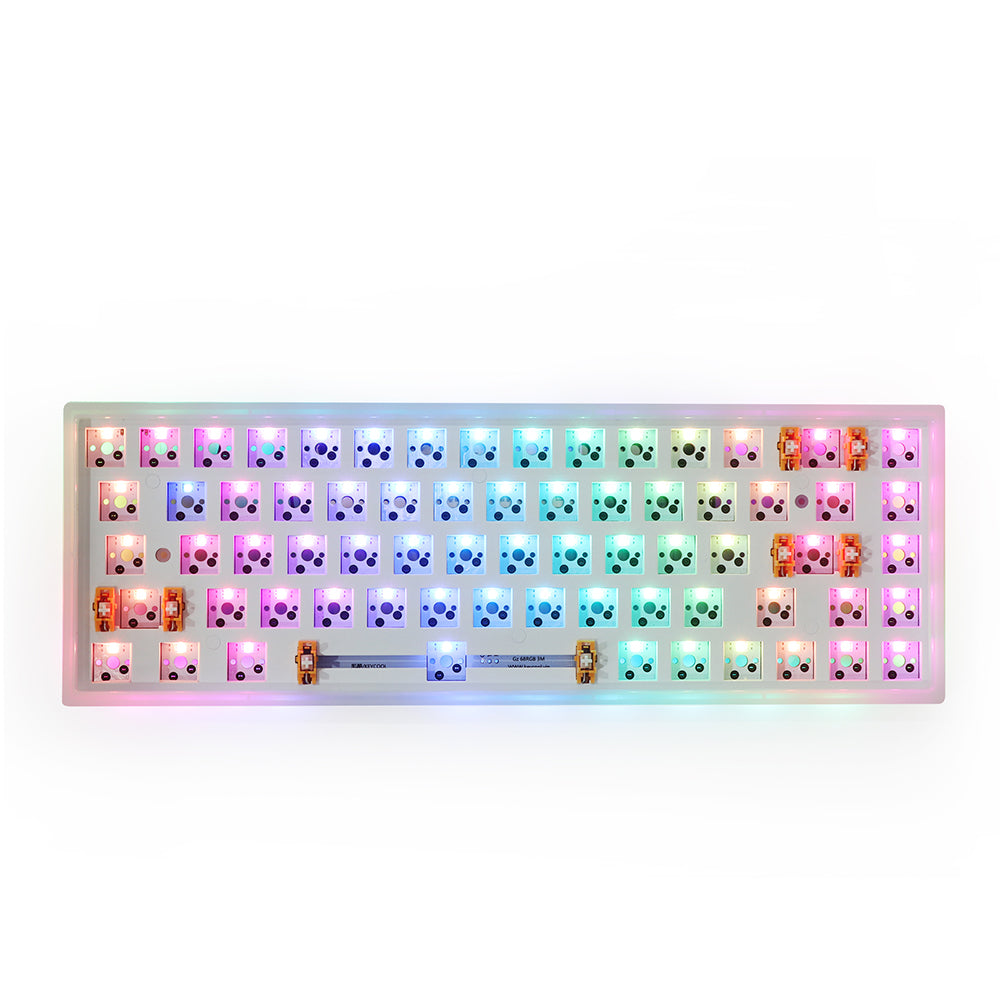

Amazing RGB Effects & Programmable with Included Software

EPOMAKER EP68 mechanical keyboard kit features a variety of default RGB effects that you can easily switch between each other with simple shortcuts. More than that, compatible software is available for those who loves more DIY settings. You can make it your own effects with the software.

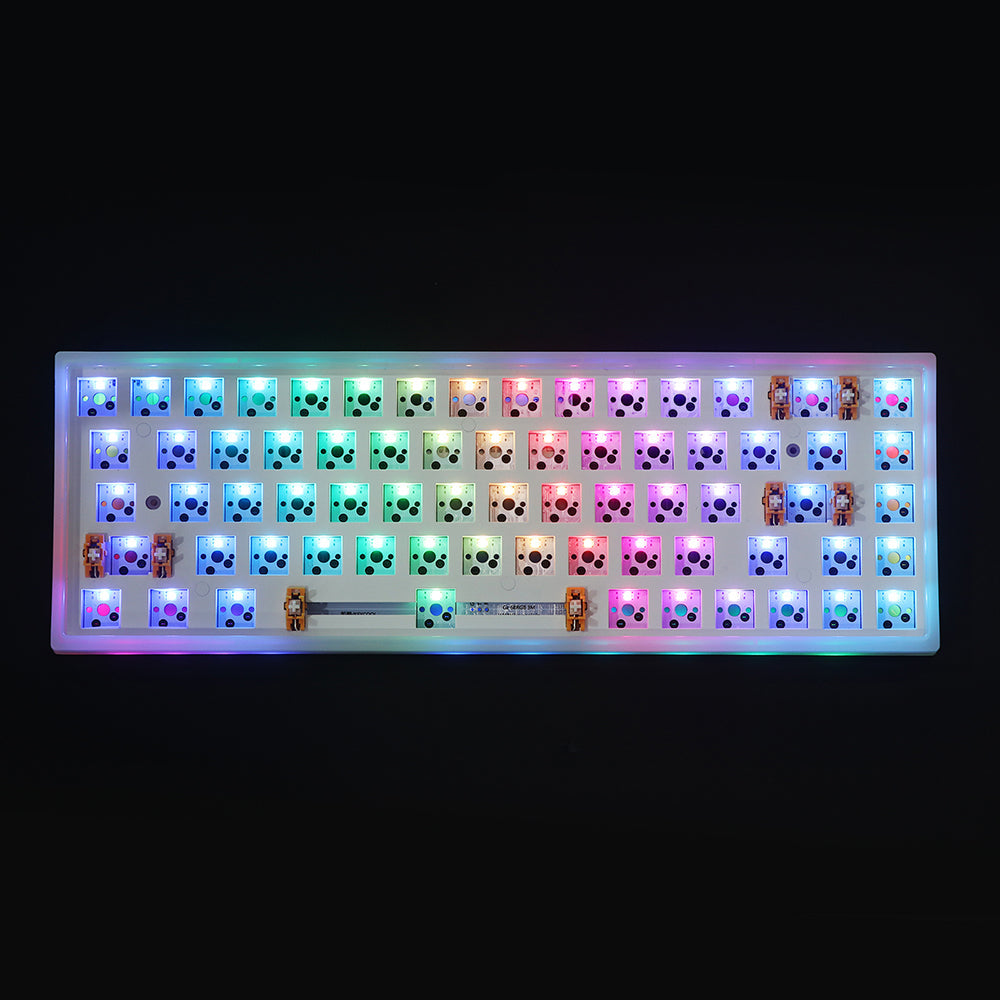

Frosted Shine-through Case

To achieve ultimate RGB backlight atmosphere, EP68 not only features per-key RGB light but also side light. With frosted white case, the light are shimmering but not too dazzle.

How to turn on keyboard and charge it
  • Turn the switch to ON and connect it with the included Type-C cable, it will start to charge. When battery is lower than 10%, SPACE backlight will flash. It will be constant on when charging and switch back to normal backlight when it’s fully charged.
  • How to pair devices
  • In 2.4Ghz mode: turn the keyboard kit on, press FN+R until R key quickly flashes, then plug in 2.4G receiver in your computer and start to pair. (Please keep the receiver and the keyboard within 20cm distance for better pair process).
  • In Bluetooth mode: turn on the keyboard kit, press FN+Q until Q key quickly flashes, then turn on Bluetooth settings on your phone or computer to search for the keyboard kit and pair. You can pair up to 3 devices by pressing FN+Q/W/E
  • How to switch modes
  • Turn on the keyboard kit and press FN+Q/W/E/R/T to switch between modes. Q/W/E are Bluetooth modes, R is 2.4G mode, T is wired mode.
  • How to change RGB backlight
  • Press FN+Pause to switch between 16 preset RGB dynamic effects
  • Press FN+Home to switch between 8 preset RGB backlight monocolor and rainbow effects Get compatible software for further RGB customization and music dynamic mode
  • Technical Specifications

    65%, 68 Keys
    Bluetooth 5.0/2.4GHz/Type-C wired
    Stabilizer Type
    Plate material
    Battery Capacity
    Cable Length
    293.5*103.5*42.3 mm
    About 796g
    Inside the box
    • Keyboard Customized Kit (Bottom Case, PCB, Stabilizers, 1*Positioning Plate, 1*Battery)
    • Type-C Cable
    • Keycap Puller
    • 1*2.4G receiver
